Briticom® offers Dry Horizontal Armoured Dielectric Loose-Tube as well as a wide range of indoor and outdoor fibre optic distribution, patching and consumer cables including Plenum, Riser and LSZH in all diameters. These are used to provide links to protocols such as FTTH, FDDI, 10 Gigabit Ethernet, ATM. This product can be used both indoors and outdoors making it ideal for telecommunications and fibre to the home (FTTH) applications as well as Datacomms. It has a rigid PE jacket and a multi tube structure containing 60 fibres.
Already bought this product from us? Share your experience on LinkedIn
- For outdoor or indoor use
- 60 fibres
- Rigid PE Jacket
- Loose-tube non-armoured
- Dry (no gel)
- Multi-tube structure
- FTTH & Telecom
- Indoor/Outdoor Datacomms

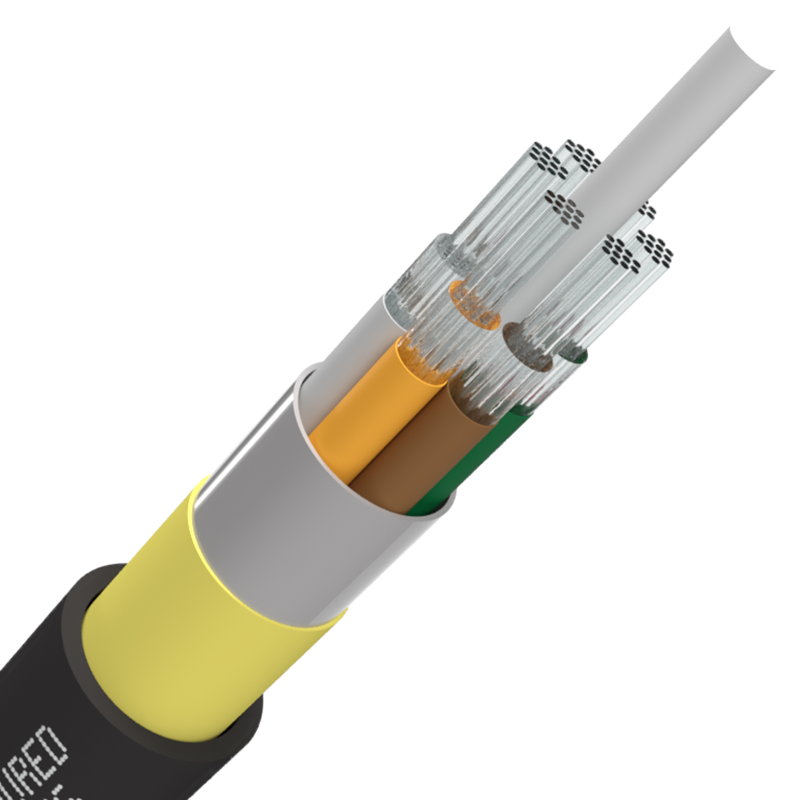

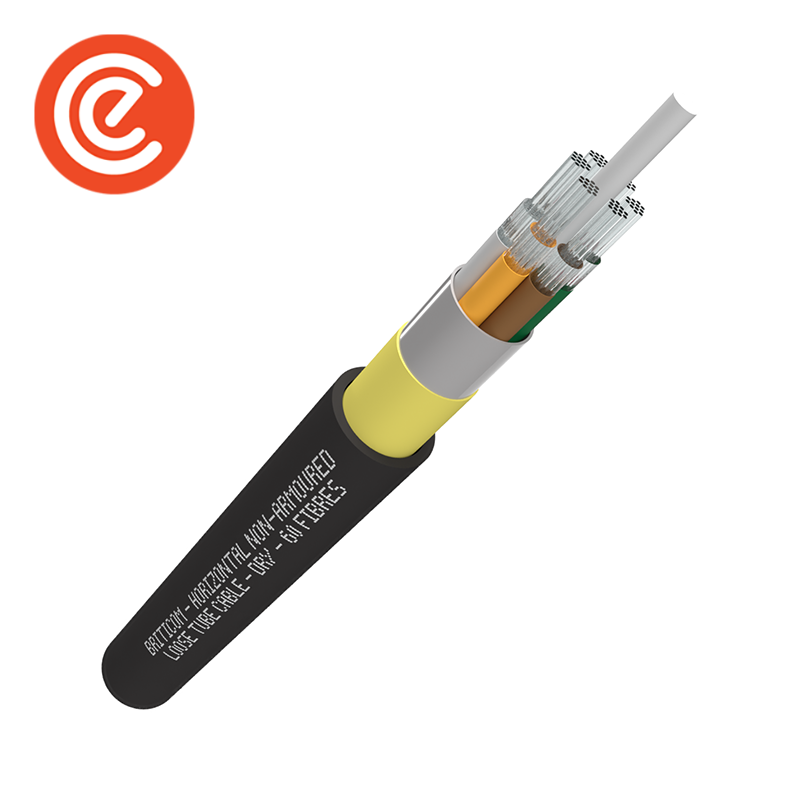

Dry Horizontal Non-Armoured Loose-Tube
| Fibre Count | 60 |
| Mode Field Diameter
1310nm 1550nm |
9.2 ± 0.4 μm 10.4 ± 0.5 μm |
| Cladding Diameter | 124.8 ± 0.7 μm |
| Cladding Non-Circularity | ≤ 0.7 % |
| Core-Cladding Concentricity Error | ≤0.5 μm |
| Coating Diameter | 245 ± 5 μm |
| Coating Non-Circularity | ≤ 6.0 % |
| Cladding-Coating Concentricity Error | ≤ 12.0 μm |
| Cable Cut-off Wavelength | λcc ≤ 1260 nm |
| Attenuation
1310nm 1550nm |
≤0.36 dB/km ≤0.22 dB/km |
| Coloured Coating Fibre Dimension | 250 ± 15μm |
| Coloured Coating Fibre Colour | Blue, Orange, Green, Brown, Grey, Natural, Red, Black, Yellow, Purple, Pink, Aqua |
| Tension (Long Term) | 600N |
| Tension (Short Term) | 1500N |
| Crush (Long Term) | 300 N/10cm |
| Crush (Short Term) | 1000 N/10cm |
| Min. Bend Radius (Dynamic) | 20D mm |
| Min. Bend Radius (Static) | 10D mm |
