Briticom® offers Figure 8 Multi Loose-Tube Aerial Cable as well as a wide range of indoor and outdoor fibre optic distribution, patching and consumer cables including Plenum, Riser and LSZH in all diameters. These are used to provide links to protocols such as FTTH, FDDI, 10 Gigabit Ethernet, ATM.
Already bought this product from us? Share your experience on LinkedIn
- Aerial – Figure 8 Multi Loose Tube
- Self-supporting design
- High tensile strength
- For outdoor use
- Water, flame and rodent resistant
- Available in many colours
- Telecommunication networks
- CATV – Cable television

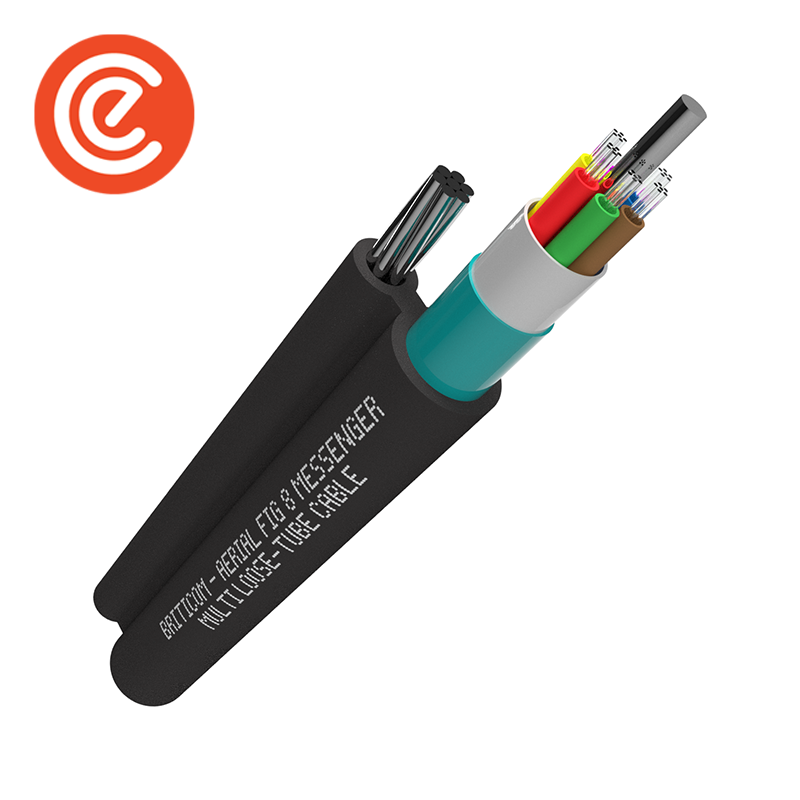

Figure 8 Multi Loose-Tube Aerial Cable
| Outer Sheath | PE or LSZH |
| Fibre Count | 2 – 144 |
| Outer Diameter (mm) | 10.5 ± 0.5 x 17.8 ± 0.3 |
| Weight per Km | 195 kg |
| Max Tensile Strength (N) | 2500 – 4800 |
| Mini Bend Radius (mm) | 10-20H |
| Span | 100 m |
| Max Crush Resistance (N/100mm2) | 1000 |
| Operating Temp. (⁰C) | -20 ~ 70 |
