Briticom® offers Horizontal Multi Loose-Tube Cable as well as a wide range of indoor and outdoor fibre optic distribution, patching and consumer cables including Plenum, Riser and LSZH in all diameters. These are used to provide links to protocols such as FTTH, FDDI, 10 Gigabit Ethernet, ATM.
Already bought this product from us? Share your experience on LinkedIn
- 72 Fibres
- For outdoor use aerial and underground
- Water, flame and rodent resistant
- Available in many colours
- 2 tubes * 6FO G.652D
- 2 tubes * 6FO G.655LA
- CATV – Cable television
- Fibre-To-The-Home (FTTH)
- ODFs to wall outlets, wall outlets to desk

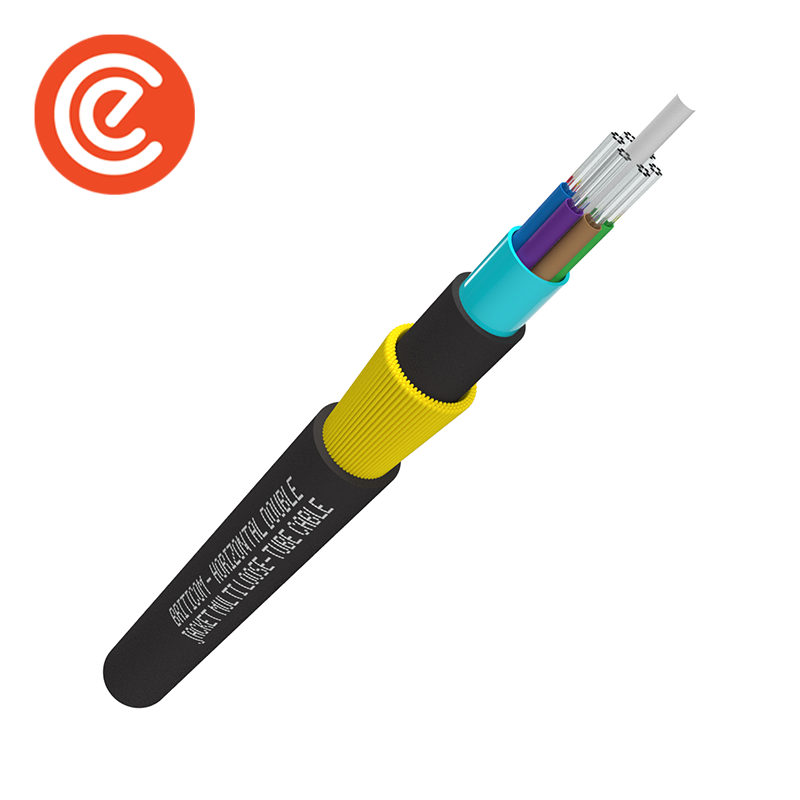

Horizontal Multi Loose-Tube Cable
| Outer Sheath | PE | ||||
| Fibre Count | 24 | 48 | 72 | 96 | 144 |
| Outer Diameter (mm) | 14 ± 0.5 | 15 ± 0.5 | 16 ± 0.8 | 17.4 ± 0.8 | 18.8 ± 0.8 |
| Weight per Km | 160kg | 165kg | 230kg | 265kg | 275kg |
| Fibre Count per Unit | 6 | 8 | 12 | 16 | 24 |
| Maximum traction (operation) | 2500N (IEC 60794-1-2-E1) | ||||
| Maximum traction (installation) | 4750N (IEC 60794-1-2-E1) | ||||
| Short term Crush Resistance | 450daN/10cm (IEC 60794-1-2-E3) | ||||
| Long term Crush Resistance | 300daN/10cm (IEC 60794-1-2-E3) | ||||
| Kock impact | 5J (IEC 60794-1-2-E4) | ||||
| Bend Radius | 15x OD of the cable (IEC 60794-1-2-E11, proc. 1) | ||||
| Operating Temperature | -25°C / +70°C (IEC 60794-1-2-F1) | ||||
