Briticom® offers FRP Horizontal Steel-Tape Armoured Cable as well as a wide range of indoor and outdoor fibre optic distribution, patching and consumer cables including Plenum, Riser and LSZH in all diameters. These are used to provide links to protocols such as FTTH, FDDI, 10 Gigabit Ethernet, ATM.
Already bought this product from us? Share your experience on LinkedIn
- FRP strength member
- Steel Tape Armoured – Double Jacket
- For outdoor use
- Water, flame and rodent resistant
- Available in many colours
- Data centre & Telecommunication networks
- CATV – Cable television
- Fibre-To-The-Home (FTTH)

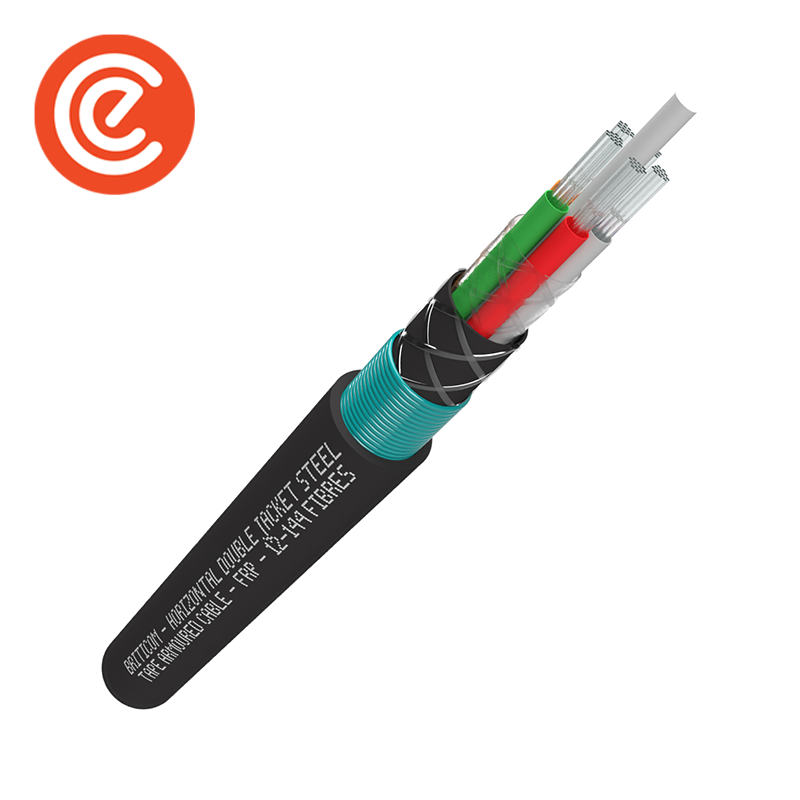

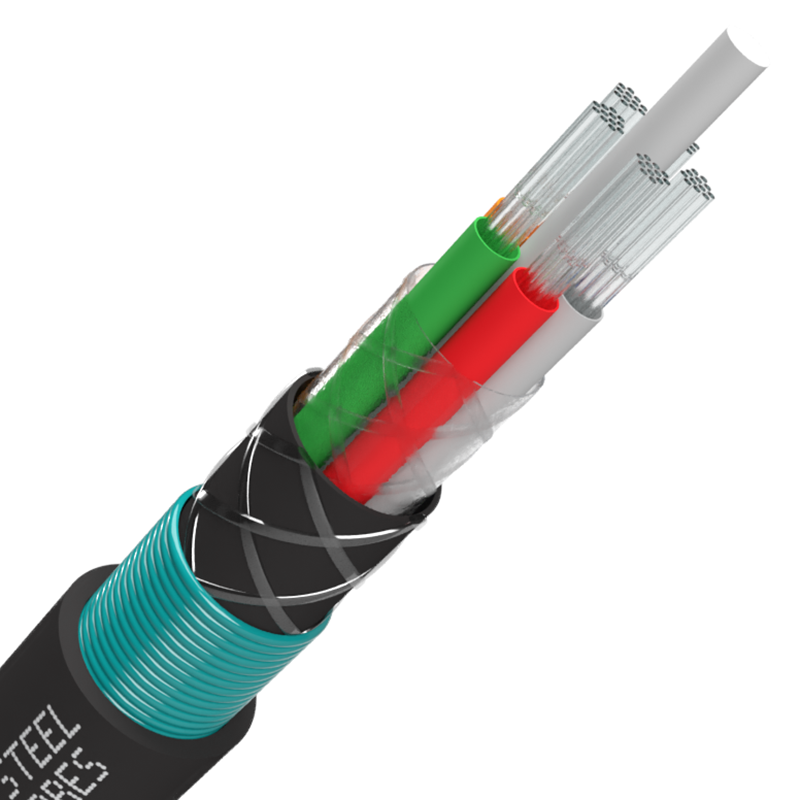

FRP Horizontal Steel-Tape Armoured Cable
| Outer Sheath | PE or LSZH |
| Fibre Count | 12 – 144 |
| Outer Diameter (mm) | 14.5 ± 0.5 |
| Weight per Km | 215 kg |
| Max Tensile Strength (N) | 1000 – 3000 |
| Mini Bend Radius (mm) | 120-340 D |
| Max Crush Resistance (N/100mm2) | 4500 |
| Operating Temp. (⁰C) | -40 ~ 70 |
