Briticom® 12 to 288 Fibres G652D Fibre Micromodule FO Cable complies with the requirements of this specification and generally meet any latest relevant ITU-T Recommendation G652. This cable has a black outer sheath made from HDPE and boasts water blocking yarn and a central FRP. This cord is perfectly suited for outdoor installations and Fibre to the Home GPON. Check out Briticom® Outdoor Cable here.
Already bought this product from us? Share your experience on LinkedIn

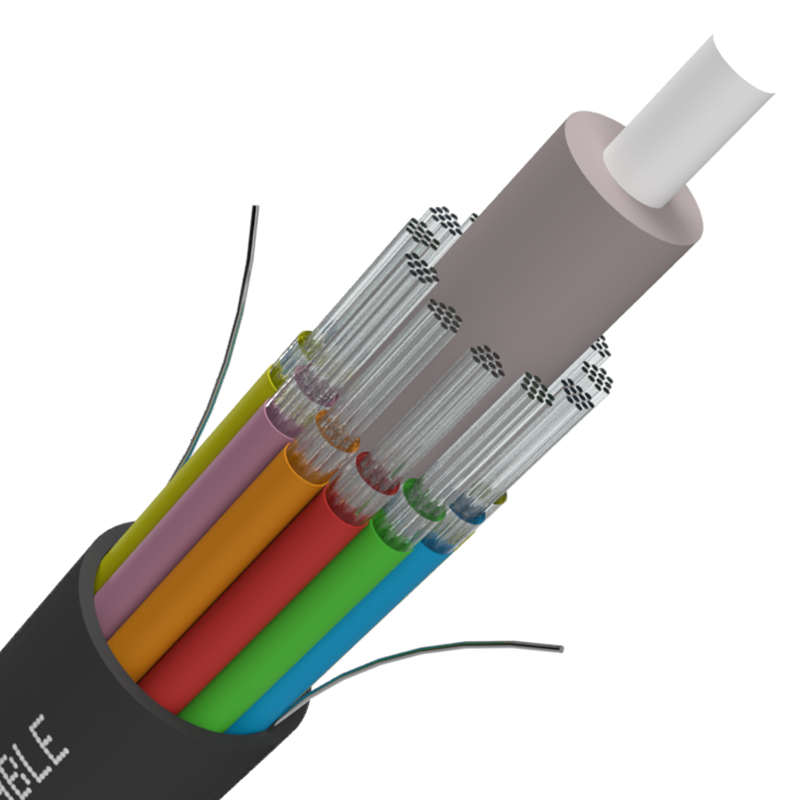

- Outer sheath (HDPE, Black)
- Water blocking yarn
- Central FRP
- Ripcord×2
- FTTH GPON – Telecom
- Outdoor Installations
| Mode field diameter – At 1310nm | 9.2 ± 0.4μm | |
| Cladding diameter | 125 ± 1μm | |
| Core concentricity error | ≤ 0.6μm | |
| Cladding non-circularity | ≤ 1.0% | |
| Cut-off wavelength (λcc) (for cable) | ≤ 1260nm | |
| Cut-off wavelength (λc) (for fibre)
(Not included colour layer) |
1180nm ~ 1330nm
245 ± 10μm |
|
| Primary coating diameter (Included colour layer) | 250 ± 15μm | |
| Coating-cladding concentricity error | ≤ 12.5μm | |
| Fibre curl radius | ≥ 4m | |
| Attenuation | At 1310nm ≤0.36dB/km At 1550nm ≤0.22dB/km |
|
| Macro bending loss Φ=60mm, 100turns at 1550nm Within 1288~1339nm |
≤ 0.1dB ≤ 3.5ps /nm·km |
|
| Chromatic dispersion At 1550nm | ≤ 18ps /nm·km | |
| Zero dispersion wavelength | 1300 ~ 1324nm | |
| Zero dispersion slope | ≤0.092ps /nm2km | |
