Briticom™ offers Figure 8 Loose-Tube Aerial Cable as well as a wide range of indoor and outdoor fibre optic distribution, patching and consumer cables – including Plenum, Riser and LSZH in all diameters. These are used to provide links to protocols such as FTTH, FDDI, 10 Gigabit Ethernet, ATM.
Already bought this product from us? Share your experience on LinkedIn
- Aerial – Figure 8 Single Loose Tube
- Self-supporting design
- High tensile strength
- Outdoor use
- Water, flame and rodent resistant
- Available in many colours
- Telecommunication networks
- CATV – Cable television
- Fibre-To-The-Home (FTTH)

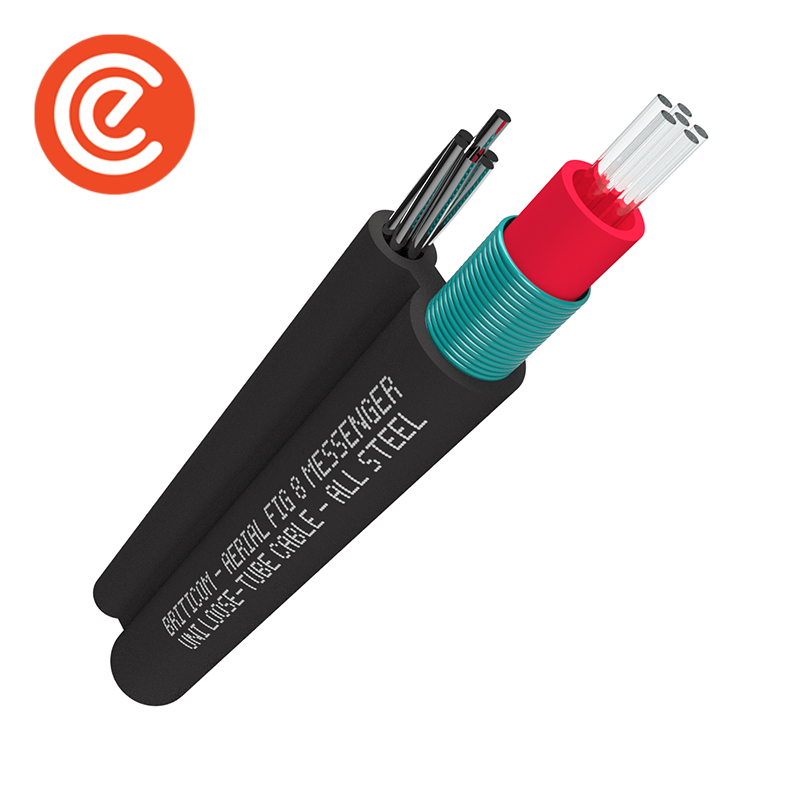

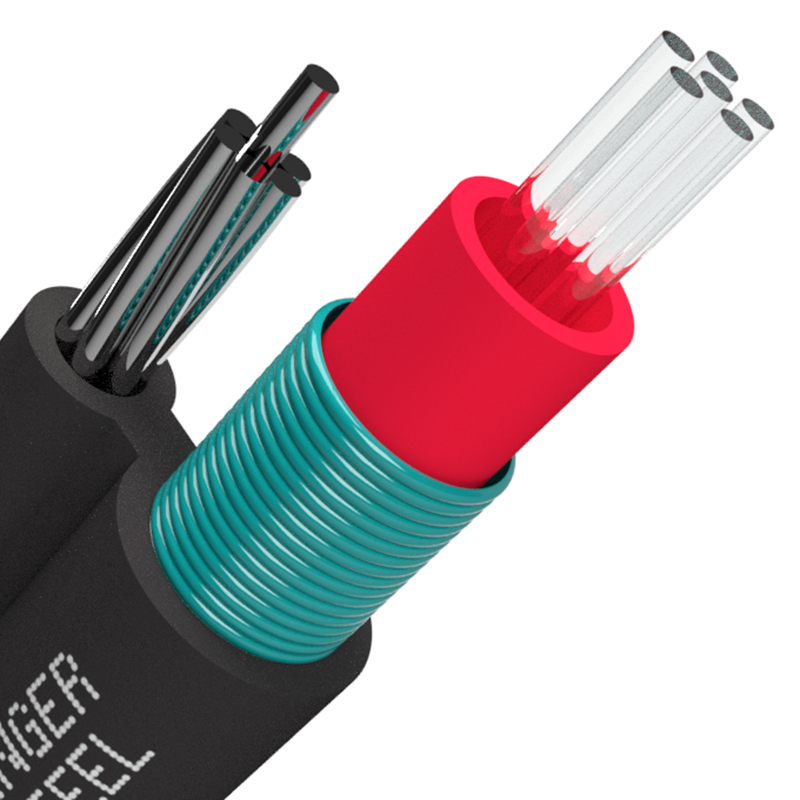

Figure 8 Loose-Tube Aerial Cable
| Specification | ||
| Mode Field Diameter | 1310nm: 9.2±0.4μm | 1550nm: 10.4±0.5μm |
| Cladding Diameter | 124.8±0.7μm | |
| Cladding Non-Circularity | ≤0.7% | |
| Core-Cladding Concentricity Error | ≤0.5μm | |
| Coating Diameter | 245±5μm | |
| Coating Non-Circularity | ≤6.0% | |
| Cladding-Coating Concentricity Error | ≤12.0μm | |
| Cable Cut-Off Wavelength | λcc≤1260nm | |
| Attenuation (max) | 1310nm: ≤0.4dB/km | 1550nm: ≤0.3dB/km |
| Fibre Count | 12 | |
| Colour Coating | Blue, Orange, Green, Brown, Grey, Natural, Red, Black, Yellow, Aqua, Yellow, Purple, Pink | |

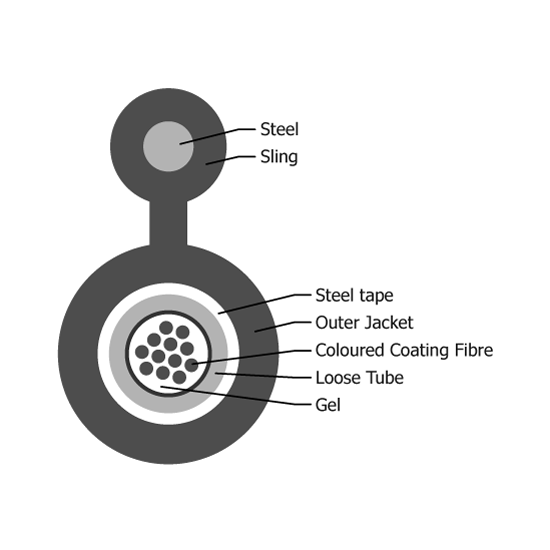

| Loose Tube
Dimensions Material Colour |
1.95mm±0.05mm PBT Natural |
|
| Strength Member
Dimensions Material |
1.2mm Steel |
|
| Outer Jacket
Dimensions Material Colour |
3.2mm±0.2mm/5.7mm±0.3mm PE Black |
|
| Tension (Long/Short Term) | 400 N / 1000 N | |
| Crush (Long/Short Term) | 300N / 10 cm / 1000 N / 10 cm | |
| Span | 80 m | |
| Minimum Bend Radius (Dynamic/Static) | 20 D mm / 10 D mm |
