Briticom® 36/48 Fibres G657A2/G652D Fibre Microduct Fibre Optic Cable has excellent mechanical and environmental properties. It is not only low weight but also easy to install and joint.
Already bought this product from us? Share your experience on LinkedIn

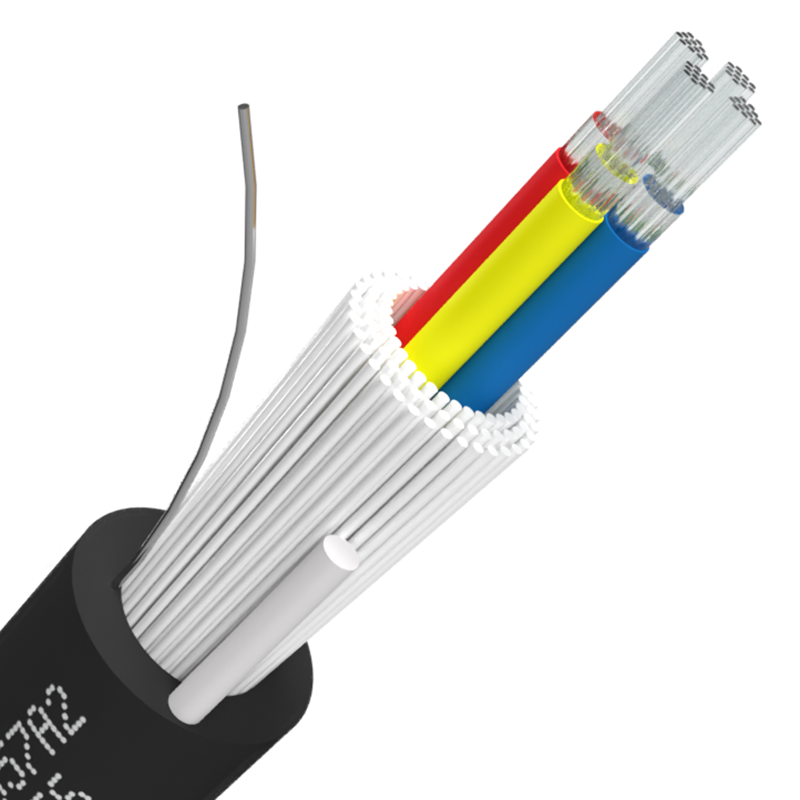

- Outer sheath (HDPE, Black)
- Glass yarn
- FRP*2
- Water blocking yarn
- Gel-free μsheath
- Ripcord*1 (Red)
- FTTH GPON – Telecom
- Outdoor Installations
Microduct Fibre Optic Cable
| Fibre count (G.657A2/G.652D) | 36 | 48 |
| μsheath No | 3 | 4 |
| Fibre No. Per Module | 12 | |
| μsheath Diameter | 1.5±0.1mm | |
| FRP Diameter | (1.0±0.1mm)*2 | |
| Outer Sheath Thickness | Nominal 2.0mm | |
| Cable OD | 8.8±0.5mm | 8.8±0.5mm |
| Cable Weight | 37kg/km±15% | 62kg/km±15% |
| Operation Temperature Range | -30 deg C to + 60 deg C | |
| Installation Temperature Range | -5 deg C to + 40 deg C | |
| Transport And Storage Temperature Range | -40 deg C to + 70 deg C | |
| Max. Tensile Load | 2000 daN | |
| Crush Resistance | 2000daN/10cm | |
| Span | 50 m | |
| Minimal Installation/Operation Bending Radius | 20 × OD / 10 × OD | |
