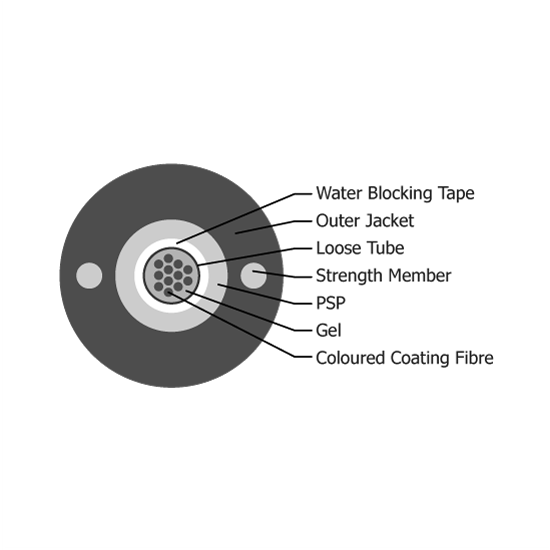

Horizontal Steel Tape Armoured Uni Loose Tube Cable – Strength Wires – 2, 12, 24 Fibres-web

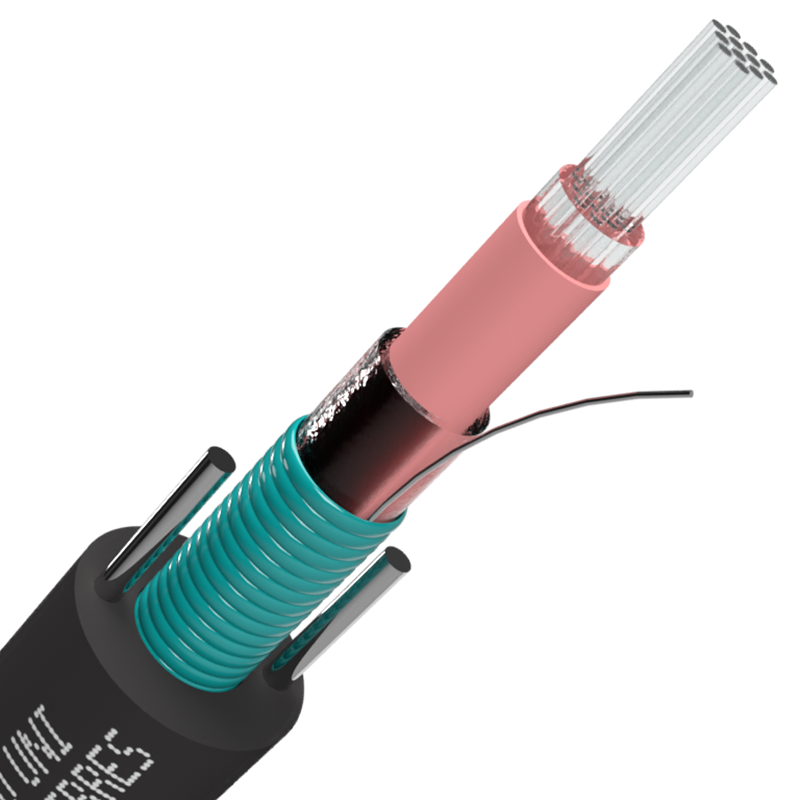

Horizontal Steel Tape Armoured Uni Loose Tube Cable – Strength Wires – 2, 12, 24 Fibres-Close

Horizontal Steel Tape Armoured Uni Loose Tube Cable – Strength Wires – 2, 12, 24 Fibres

Name: Horizontal Steel Tape Armoured Uni Loose Tube Cable – Strength Wires – 2, 12, 24 Fibres
SKU: ULSTAS2C12LS2W
Availability: InStock

Briticom™ offers a wide range of indoor and outdoor fibre optic distribution, patching and consumer cables – including Plenum, Riser and LSZH in all diameters. These are used to provide links to protocols such as FTTH, FDDI, 10 Gigabit Ethernet, ATM.

Cable Type

Fibre Type

No of Fibres

Material

Additional

Clear

Example PN ULSTAS2C12LS2W Categories: Horizontal, Outdoor Cable

general information
Additional information

For outdoor use
PE and flame-retardant LSZH sheath options
Harsh environments including direct burial
Water, flame and rodent resistant
Available in many colours

Data centre & Telecommunication networks
CATV – Cable television
FTTH & Telecom
Indoor/Outdoor Datacomms

Fibre Count	2 – 12 – 24
Outer Sheath	PE, LSZH, PVC, Plenum
Outer Diameter (mm)	8.3 – 9.0 (10.50 when 24 FO)
Nominal Weight (kg/km)	66 – 82
Max Tensile Strength (N)	600 – 1500 – 1800
Min Bend Radius (mm)	10-20 D
Max Crush Resistance (N/100mm2)	3500
Operating Temperature (°C)	-40 to +70

DOWNLOAD DATASHEET

Cable Type	ULSTA (Uni-Loose Tube Steel Tape Armoured), MTSTA (Multi-Loose Tube Steel Tape Armoured), MTDSTS (Multi-Loose Tube Double Steel Tape Armoured & Sheath), MLNA (Multi-Loose Tube Non-Armoured), ULNA (Uni-Loose Tube Non-Armoured), MTLAT (Multi-Loose Laminated Aluminium Tape), ULLAT (Single-Loose Tube Laminated Aluminium Tape)
Fibre Type	S1 (OS1), S2 (OS2), M1 (OM1), M2 (OM2), M3 (OM3), M4 (OM4), A1 (G657A1), A2 (G657A2), B3 (G657B)
No of Fibres	C1, C2, C3, C4, C5, C6, C7, C9, C10, C11, C12, C72, C48, C72, C96, C144, C288
Material	HD (High-Density Polyethylene), PV (PVC), LS (LSZH), PE (Polyethylene), LD (Low-Density Polyethylene), DJ (Double Jacket PE/PVC), DJHD (Double Jacket HDPE), SJHD (Single Jacket HDPE), SJPE (Single Jacket PE)
Additional	DY (Dry), 2W (2 Wires), FI (Flat inside Round), SM (Steel Wire Messenger), FRPM (FRP Messenger), FRPMF8 (Figure 8 FRP Messenger), FRP2 (FRP x 2), FCM (FRP Central Strength Member), SCM (Steel Central Strength Member), Blank if none

Horizontal Steel Tape Armoured Uni Loose Tube Cable – Strength Wires – 2, 12, 24 Fibres
