Briticom™ 1U UTP Patch Panel offers a perfect solution for simple, high density applications. With a flat panel design and 24 modular KSJ ports its simple to install and use. Our Briticom™ 1U UTP Patch Panel is also available in 2U, 0.5U and with shutters to further aid the user. This patch panel can be used with CAT5E, CAT6 & CAT6A RJ45 modular jacks. We have designed and manufactured a wide range of unique and robust patch panels ranging from 1U to 4U. These patch panels have various applications such as Data and Server Racks and FTTx and they are easy to operate with total from access for users. Find more technical information and specifications using the tabs below.
Already bought this product from us? Share your experience on LinkedIn

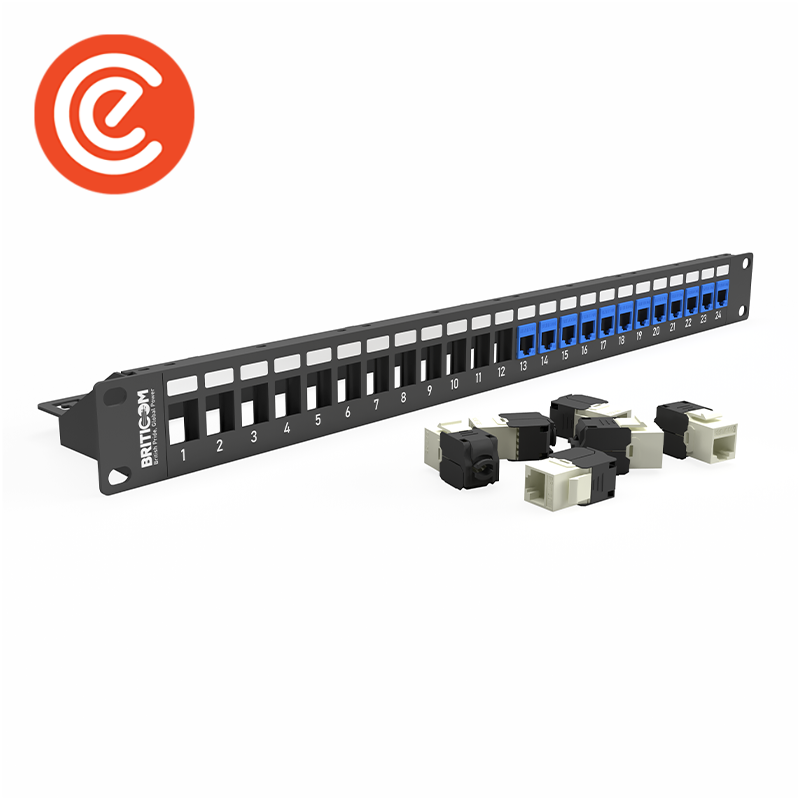

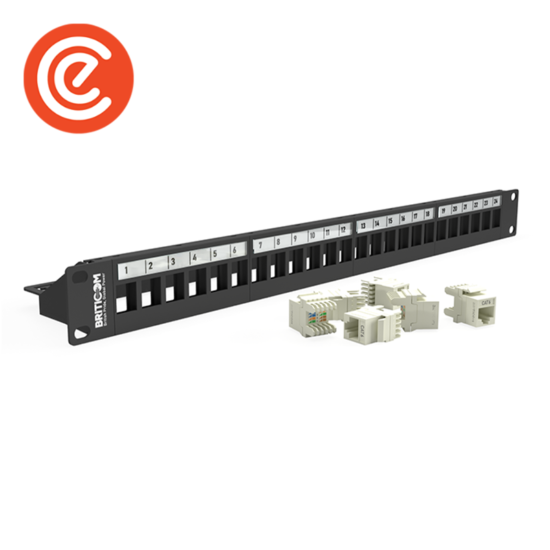

Empty Patch Panel Flat 24 Port Modular 1U UTP
- Flat-panel design
- Rear bar for tidier cable management
- 24 modular KSJ ports
- Also available in 2U, 0.5U, and with Shutters
- ANSI/TIA-568-C.2 Standard of 2009
- ANSI/TIA-568.0-D Standard of 2017
- Data & Server Racking
- Cat 5e, Cat 6 & Cat 6a RJ45 Modular Jacks
- Data Centres
- LAN installations
| Norms | ISO/IEC 11801 3rd Ed., EN 50173-1, ANSI/TIA-568-C.2, ANSI/TIA-568.0-D |
| Housing material | 1.5 mm SPCC cold rolled steel sheet, powder-coated |
| Material standard | EN 10 130(1991), BS 1449, NFA 36/401, DIN 1623, UNI 5866, ASTM, SAE, NFA 36/401 |
| Operation Temperature | -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA-568-C.2, ANSI/TIA-568.0-D) |
