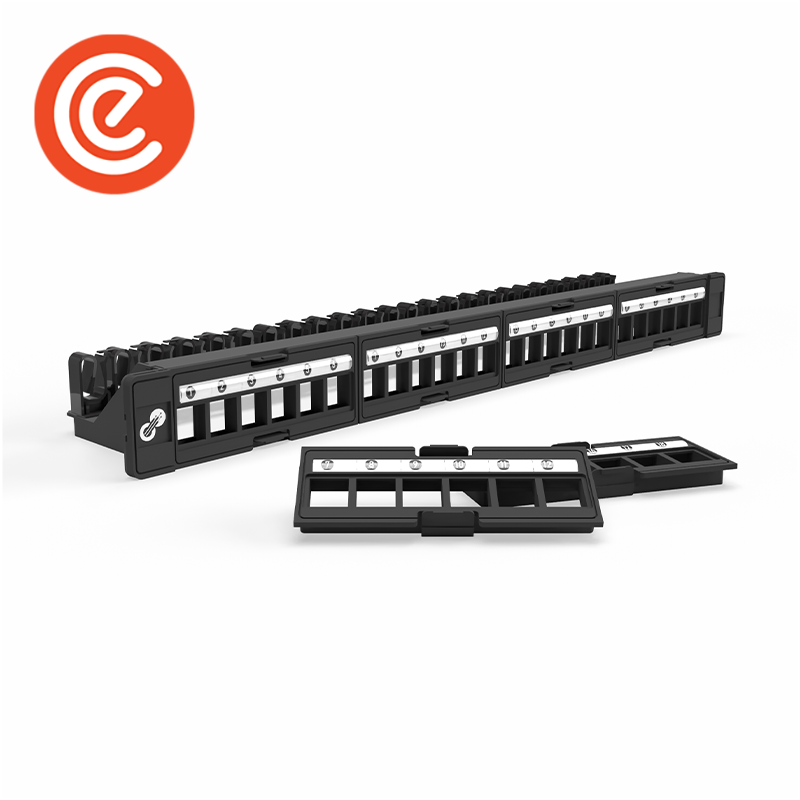

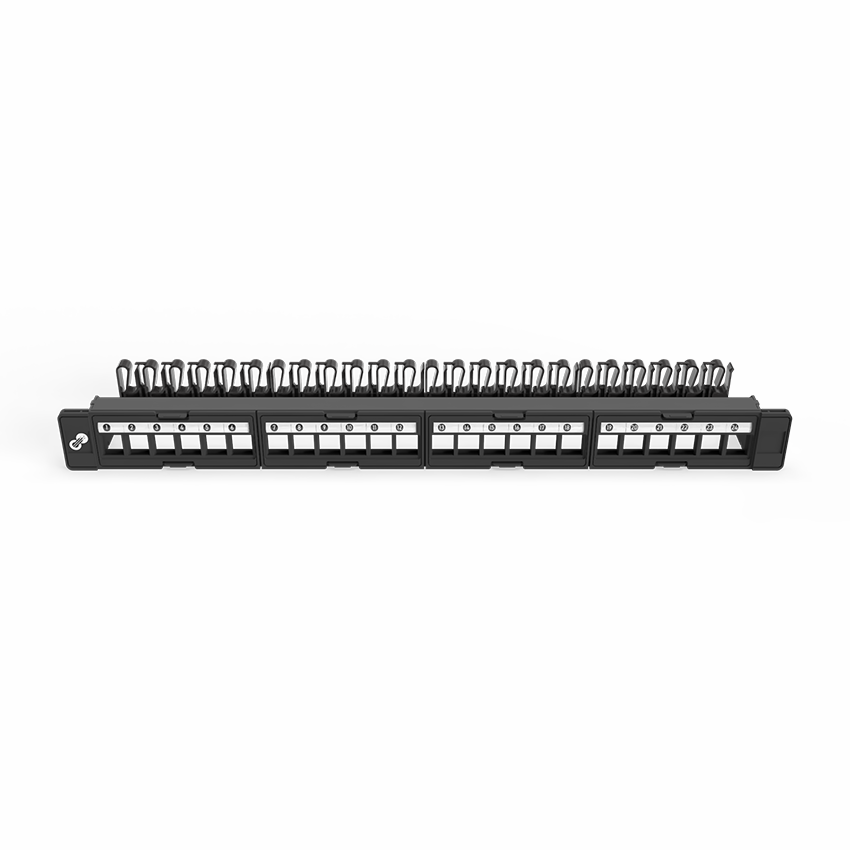

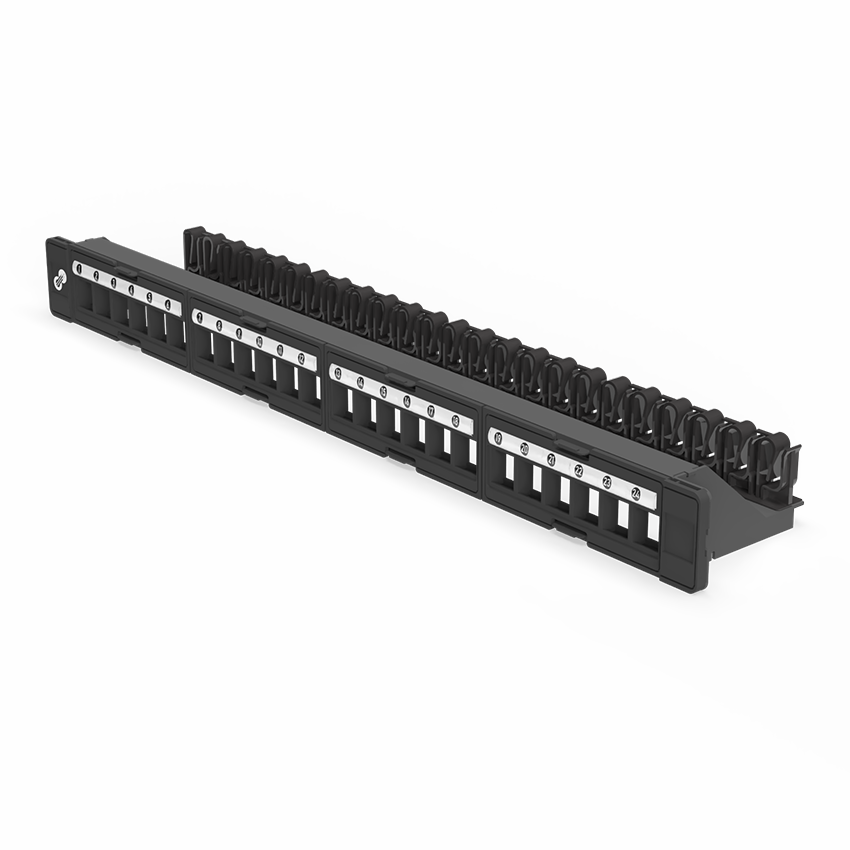

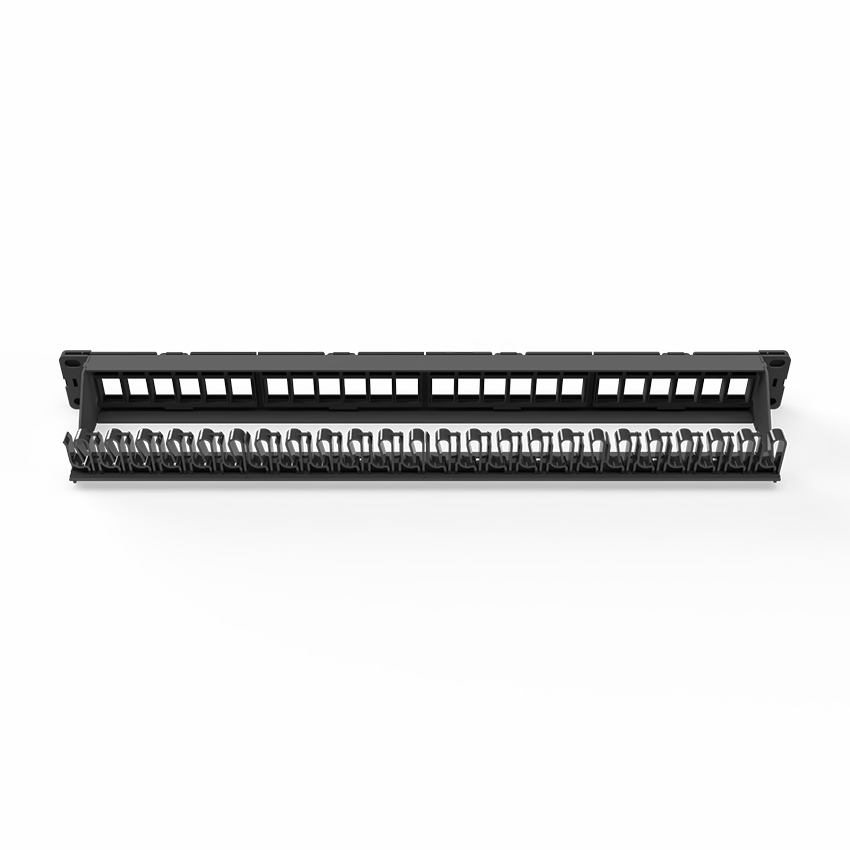

This Special Cable Organiser 24 Port Modular Patch Panel is exclusively designed by Briticom®. Model 02, 24 Ports – Modular, has a unique loop cable organising system to enable easy and secure cable management. The cable holders suit cable diameter up to 9.4mm. Made from hard plastic with a good bending capability the holder contracts around the cable to hold it in place securely.
Already bought this product from us? Share your experience on LinkedIn
- Exclusive Briticom design
- Modular
- Modules can be flipped from top to bottom
- 25-year warranty
- Labelled ports
- ANSI/TIA-568-C.2 & ANSI/TIA-568.0-D
- 19” 1U
- Suitable for Cat 8 to Cat 5
- 24 ports and flexible cable slots
- Suitable for up to 9.4mm cables
- Data and server racking
- Data centres
- LAN installations
| Patch Panel | |
| Modules | 4 x (109mmx43.9mm) |
| Ports Per Module | 4 |
| Port Depth | 10.5mm |
| Norms | ISO/IEC 11801 3rd Ed., EN 50173-1, ANSI/TIA-568-C.2, ANSI/TIA-568.0-D |
| Housing Material | 1.5 mm SPCC cold rolled steel sheet, powder-coated |
| Material Standard | EN 10 130(1991), BS 1449, NFA 36/401, DIN 1623, UNI 5866, ASTM, SAE, NFA 36/401 |
| Grounding | Central ground connection |
| Operation Temperature | -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA-568-C.2, ANSI/TIA-568.0-D) |
| Width | 19” |
| Depth of Rear Bar | 34mm |
| Overall Height | 42mm |
| Cable Organiser Loops | |
| Cable Holder Height | 27.5mm |
| Cable Holder Individual Width | 13.9mm |
| Cable Holder Individual Depth | 10.5mm |
| Individual Depth of Loop | 9.95mm |
| Max Stretch | 9.4mm |
| Slot Quantity | 24 inline cable holders |
| Detachable | Yes (4 blocks of 6) |
| Deficit Between End of Jack and Holder | 42.2mm |
| Lock Type | Quick release |
| Overall Height of Organising System | 35mm |
