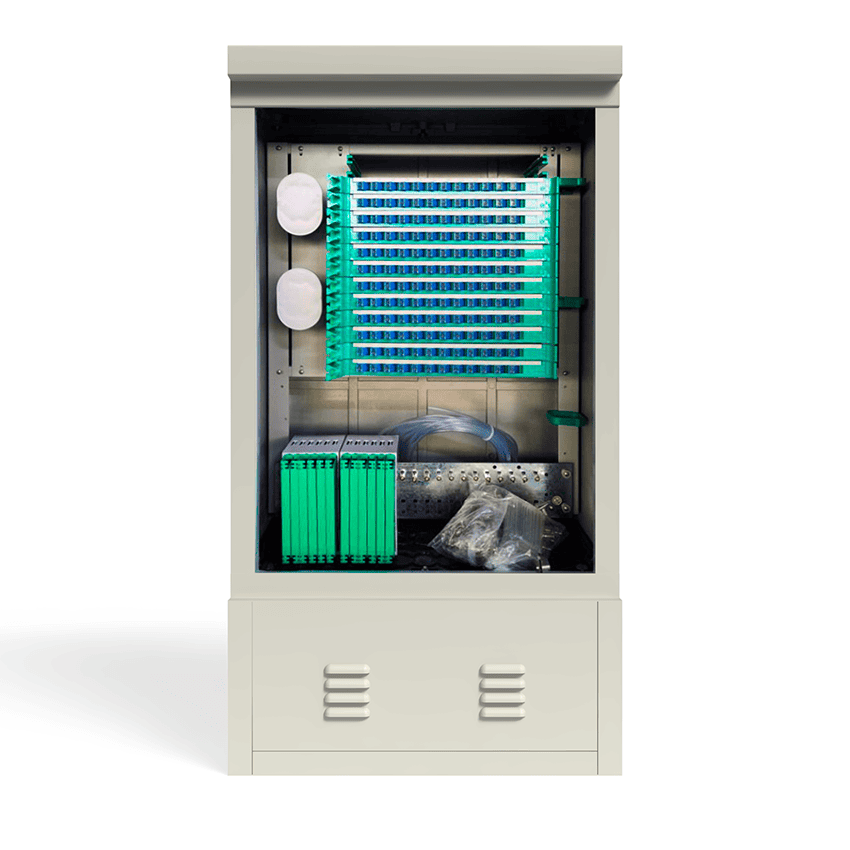

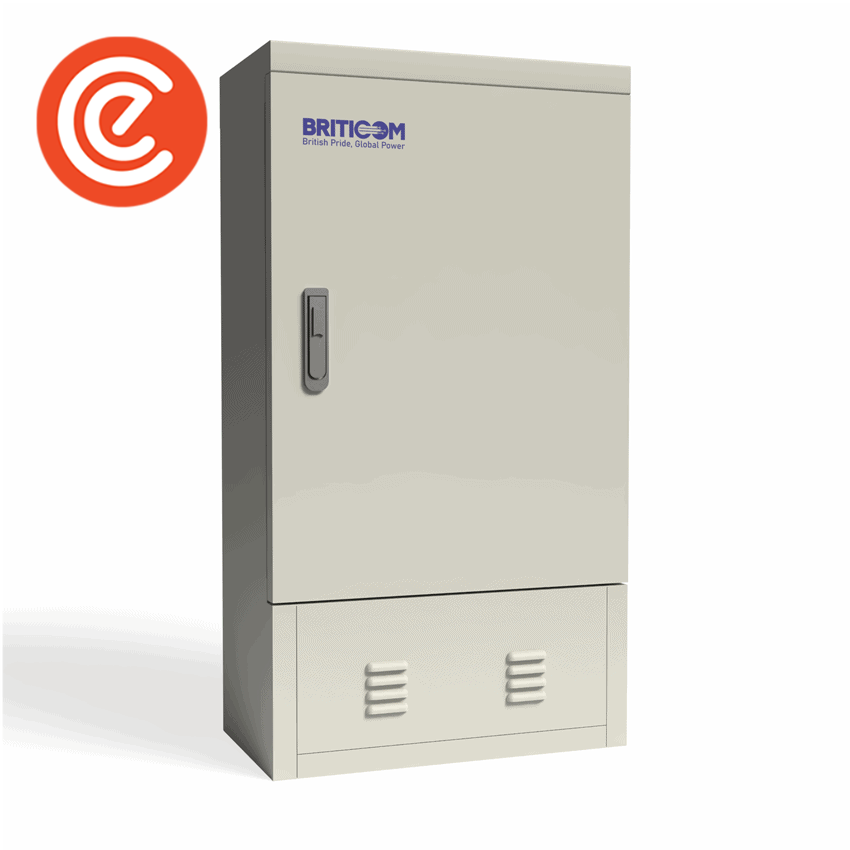

Briticom® Outdoor Fibre Street Fibre Cabinet are used to house and protect cables for pass through, reservation and fibre distribution. With both IP55 rating for harsh environments and temperatures and a lockable door this cabinet is ideal for many applications such as telecommunications networks, CATV Cable television and Fibre to the Home (FTTH).
Already bought this product from us? Share your experience on LinkedIn
- IP55 and IK10 rating (harsh environment and temperatures)
- IEC Standard 60529
- The cabinet body is made of high-quality Q235A cold-rolled steel.
- It adopts a single-sided operation design with a complete grounding system.
- Reserved positions for direct fusion splicing units enable efficient cable routing (optional).
- Supplied with 12 empty fusion splice trays.
- Lockable door
- RoHS compliant materials
- Telecommunication networks
- LAN, MAN and WAN applications
- CATV – Cable television
- Fibre To The Home (FTTH)
| Color | RAL 7035 |
| IP grade | IP55 |
| Outer box materials | Cold-rolled plate T=1.2mm |
| Product dimensions HxWxD (mm) | 1035×560×308 |
| No. | Name of material | Quantity | Unit | Remark |
| 1 | Box with base | 1 | set | |
| 2 | Door panel (including door lock and lock rod assembly) | 1 | set | |
| 3 | Fiber coil wheel | 2 | piece | |
| 4 | Management ring | 2 | piece | |
| 5 | Empty fusion tray | 12 | piece | Without adapters |
| 6 | Stripping plate | 1 | set | Without direct fusion |
