Briticom® Outdoor Street Fibre Cabinet and frames are used to house and protect fibre optic cables for pass through, reservation and fibre distribution.
Already bought this product from us? Share your experience on LinkedIn
- IP65 & IK10 rating (Harsh environment & temperatures)
- Allows quick installation of fibre optic cable
- Capacity can be adjusted as necessary
- RoHS materials
- Telecommunication networks
- LAN, MAN and WAN applications
- CATV – Cable television
- Fibre-To-The-Home (FTTH)

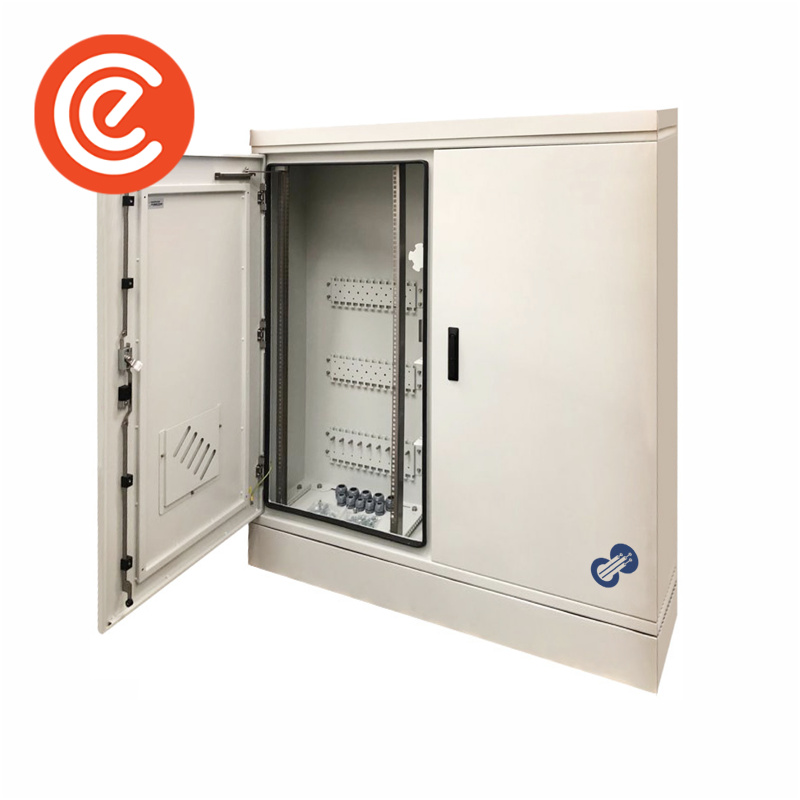

Outdoor Street Fibre Cabinet
| Material | Outer: 3 mm Aluminium (single skin) Rails: 2 mm AISI304 stainless |
| Dimensions | 1450 (w) x 1545 (h) x 360 (d) mm |
| Adapter Port | SC Simplex |
| Splitter Option | 16 x 1:8 PLC splitter or 10 x 1:16 PLC splitter |
| Max. Capacity | 576 Fibres |
| Max Unit Height | 26 U |
| Cable Glands | 10 × PG29 plus 10 × PG21 |
| Cable Entry | 2 × Skid Cable Entry |
| Locking System | 3-point locking system |
| Max Splice Tray Qty | 48 pcs |
| Rating | IP65 and IK10 rating |
