Briticom® Indoor Fibre Cabinet 46U are used to house and protect fibre optic cables for pass through, reservation and fibre distribution.
Already bought this product from us? Share your experience on LinkedIn
- Allows quick installation of fibre optic cable
- Capacity can be adjusted as necessary
- 1800 FO capacity
- 46U
- Built-in direct splice unit
- RoHS compliant materials
- Lockable front door with 15 transparent windows
- Full metal back door
- Lockable door
- Telecommunication networks
- LAN, MAN and WAN applications
- CATV – Cable television

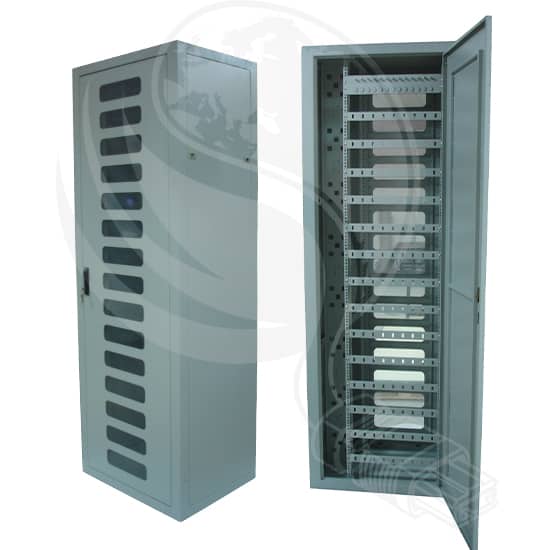

Indoor Fibre Cabinet 46U
| Material | Cold-Rolled Steel |
| Dimensions | 750x2200x600mm |
| Splice Tray Qty. | 34pcs |
| Max Capacity | 1800 loaded with pivoting patch panel |
| Plinth | Different heights available |
| Cable management | Side-mounted cable spool |
| Unit Height | 46U |
| Nominal work wave-length | 850nm, 1310nm, 1550nm |
| Operating temperature | -10ºC-+45ºC |
| Storage temperature | -40ºC +70ºC |
| Relative humidity | ≤85%(+30ºC) |
| Atmospheric pressure | 70~106 KPa |
| Insertion loss | ≤0.3dB |
| Return loss | ≥45dB (PC), ≥50dB (UPC), ≥60dB (APC) |
| Isolation resistance | ≥1000MΩ/500V (DC) |
| Durability | >1000 times |
| Anti-voltage strength | ≥3000V(DC)/1min |
