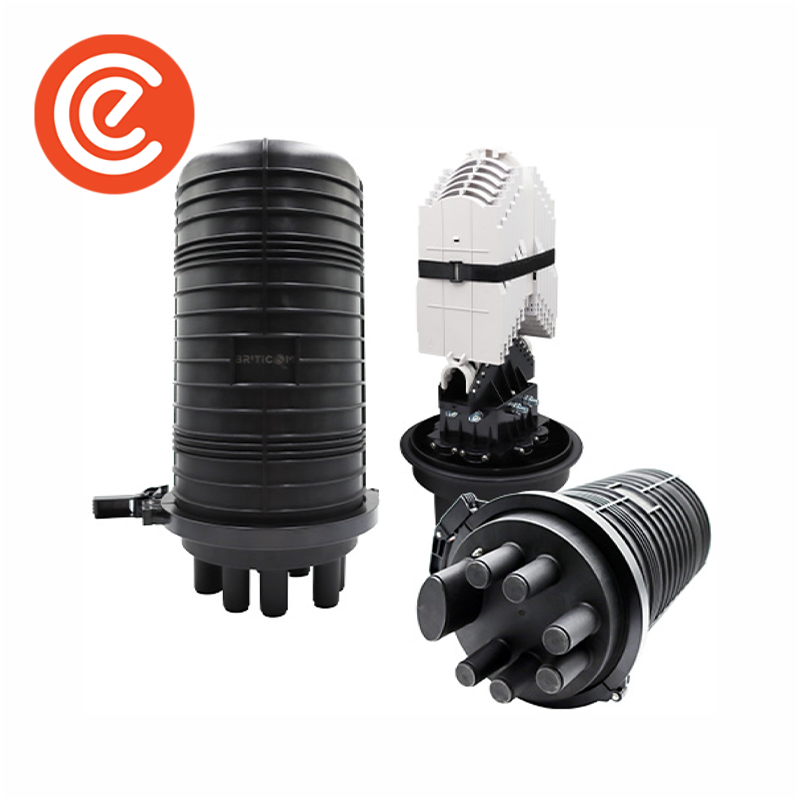

Briticom® Heat-Shrink Dome Enclosure is used to protect and house fragile fibre splices and joints between cables. They can also be used to house splitters and patch connectors of splitters with fibre optic cables.
Already bought this product from us? Share your experience on LinkedIn
- IP68 & IK10 rating
- 288 FO
- Pole, wall and manhole
- Very strong and robust shell
- Easy access (tool-free)
- 288 fibres (24 fibres per tray)
- Heat shrink sealing
- RoHS materials
- Telecommunication networks
- LAN, MAN and WAN applications
- CATV – Cable television
Heat-Shrink Dome Enclosure
| Dimensions (mm) | 510×258 (tray 278x112x10) |
| Cable entry ports | 1 large oval & 6 round |
| Material | PP plastic |
| Type of seal | Heat shrink |
| Max. Capacity per enclosure | 288 fibres (splicing) |
| Splice capacity for tray | 12 (24 FO per tray) |
| Application | Pole, wall and manhole |
| IP rating | IP68 |
| Accessories included | Earthing wire, nylon tie, buffer tube, emery paper, metal paper, metal hoop, insulation tape, aluminium foil |
| Accessories to be ordered in addition | Earthing ground, pressure testing valve, small heat-shrinkable fixing sleeve (for the small round port), large heat-shrinkable fixing sleeve with branching-off clip (for the large oval port) |
