Briticom® Heat Shrink Inline Enclosure 180FO is used to protect and house fragile fibre splices and joints between cables. They can also be used to house splitters and patch connectors of splitters with fibre optic cables. This model has both an IP68 rating and IK10 rating for harsh environments and temperatures. It is manufactured with a strong and robust shell with heat shrink sealing, making it the ideal solution for a wide range of applications including Telecommunications Networks, CATV Cable Television and Fibre to the Home (FTTH)
Already bought this product from us? Share your experience on LinkedIn

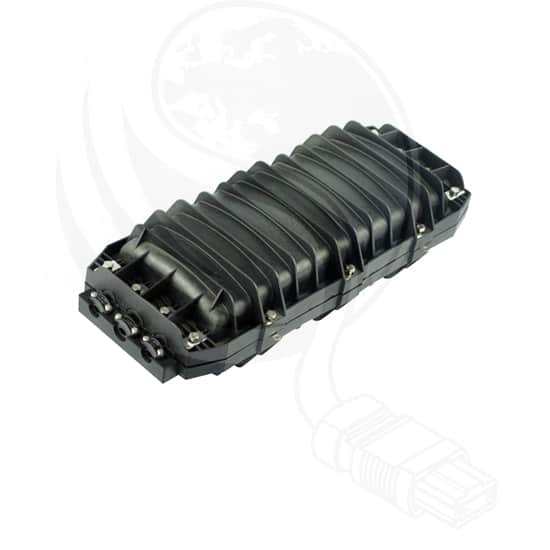

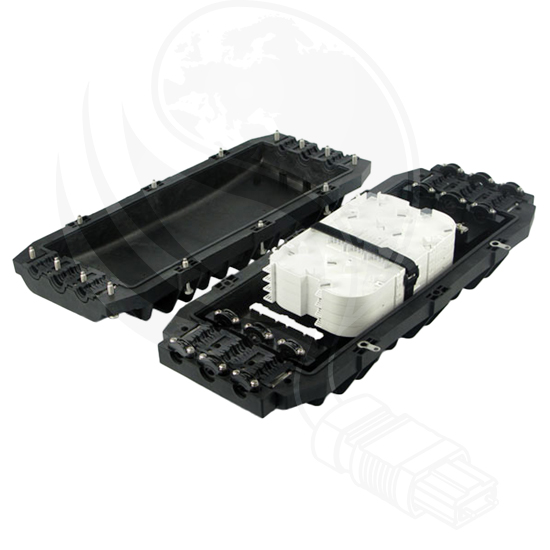

Heat Shrink Inline Fibre Optic Enclosure – Standard – Model 05
- IP68 & IK10 rating (Harsh environment & temperatures)
- 180 FO
- Very strong & robust shell
- Heat shrink sealing
- RoHS materials
- Telecommunication networks
- LAN, MAN and WAN applications
- CATV – Cable television
- Fibre-To-The-Home (FTTH)
| Usage | Aerial; Duct; Manhole; Wall; Direct burying (Horizontal) |
| Dimensions | (648×254×158)mm |
| Cable Entries | 4 entries @ 10-20mm, 2 entries @ 16-25mm |
| Weight | 6.0 ~ 7.0 Kg |
| Type of Seal | Heat Shrink |
| IP Rating | IP68 |
| Voltage resistance | 15KVDC/1min |
| Capacity per Tray & Total Capacity | 24/tray & 180 FO per enclosure |
| Material | Polypropylene |
| Horizontal pull force/crush pressure | 1000N / 3000N10cm |
| Insulation resistance | 2 x 104Ω |
| Atmosphere pressure (Kpa) | 70~106 |
