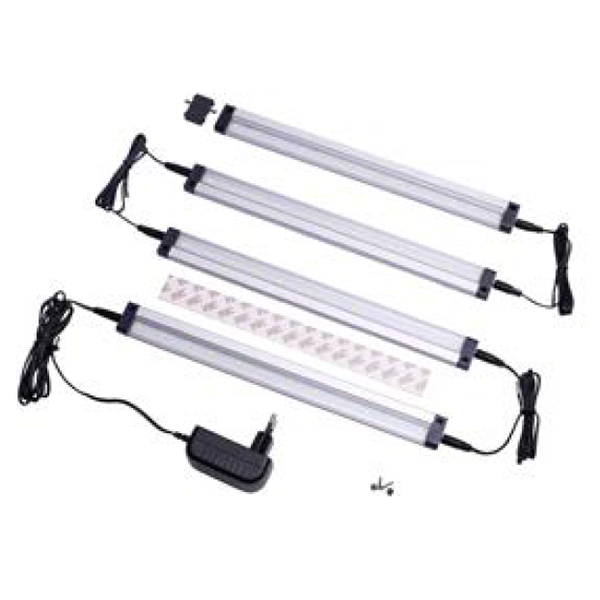

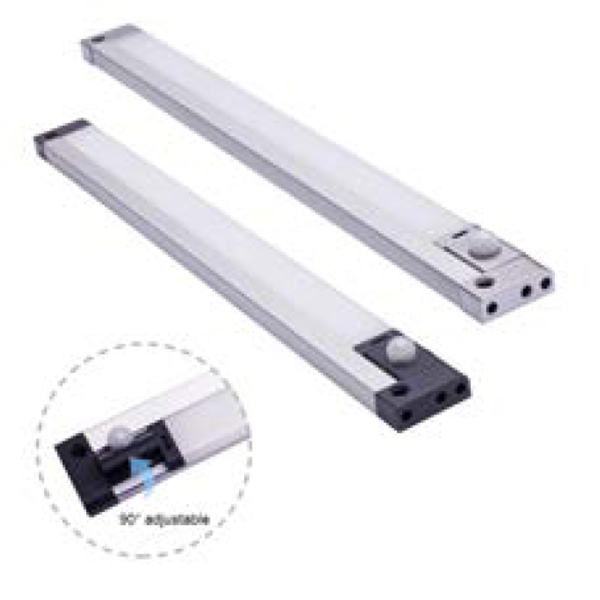

Briticom™ LED Lighting is flexible usable due to its compact design and the mounting with magnets. It can be mounted horizontally or vertically inside of your 483 mm (19”) cabinet and ensures an optimized lighting via efficient LED lights, which have the maximum light power from the start, without warming phase. The automatic door mode will switch on the light, due to the sensor, automatically when you open the door of your 483 mm (19”) cabinet and also switch off the light when the door is being closed. Alternatively you can use the touch mode for manual use. In this case just wave in front of the sensor one time for switching on the light and a second time to switch off the light. A power adapter is included in the standard delivery content, therefore the LED Lighting is usable immediately..
Already bought this product from us? Share your experience on LinkedIn
- Nominal input voltage: 100-240 V
- Input frequency: 50/60 Hz
- Operating voltage: DC 12 V, 1000 mA
- Performance: 12 W
- Control: IR sensor
- Power adapter plug: CEE 7/16 (Type C) Europlug
- LED DC Input connector: 3.5 mm; 1,5 m length
- Maximum total current draw: 250 mA @ 220-240 V
- Lum. Flux: 223 Im
- Light source: 6500K LED
- Consumption in kWh/1000 h: 0.003 kwh
- Durability in hours: 30000
- Elevation (above MSL) operating storage: 0-3000 m / 0-15 000 m
- Storage-/Operation temperature: -25 °C to +65 ° C / -20 °C to +45 °C
- Humidity operating storage: 0-95 % RH Non-condensing 0-95 % RH Non-condensing
- Aluminum housing
- Color: Black plastic & grey aluminum
- CE & ROSH compliant
- Start-up time until 60% of max.luminous flux has been reached: <1 sec.
- Data centres
LED Lighting
| Functions available: | IR Sensor PIR Motion Sensor Touch Switch No Sensor |
| Size mm | 28.6 x 9.6 x 300 |
| Quantity per carton | 20 |
| Carton Dimension cm | 34 x 32 x 24 |
| Volume (m3) | 0.026 |
