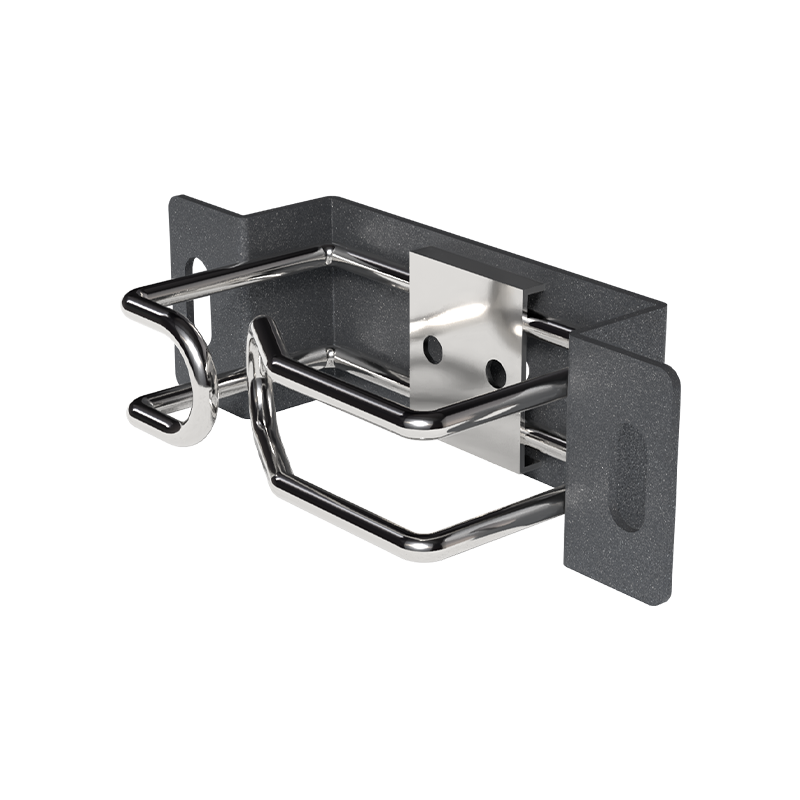

The Briticom cable hanger ring is a practical accessory designed to efficiently manage and organize vertical cable runs within Briticom network or server cabinets. It helps maintain a clean and structured cable layout, which is essential for airflow, maintenance access, and overall system reliability.

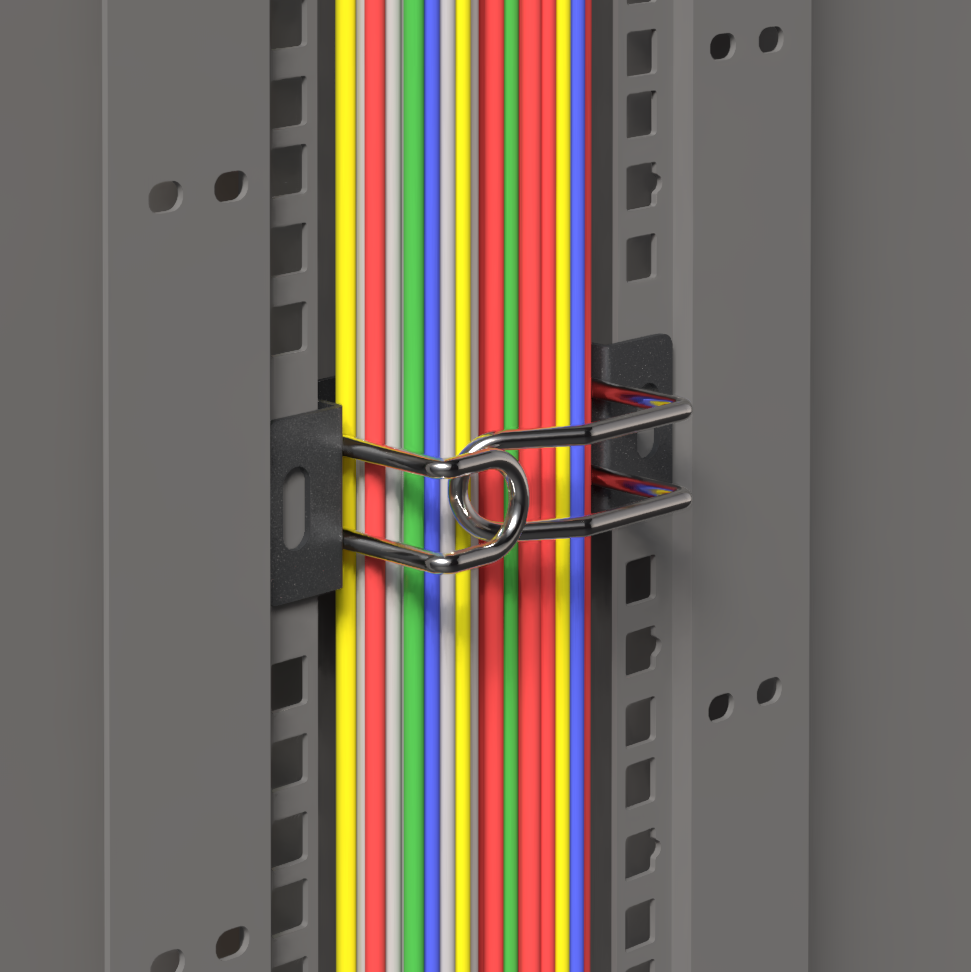

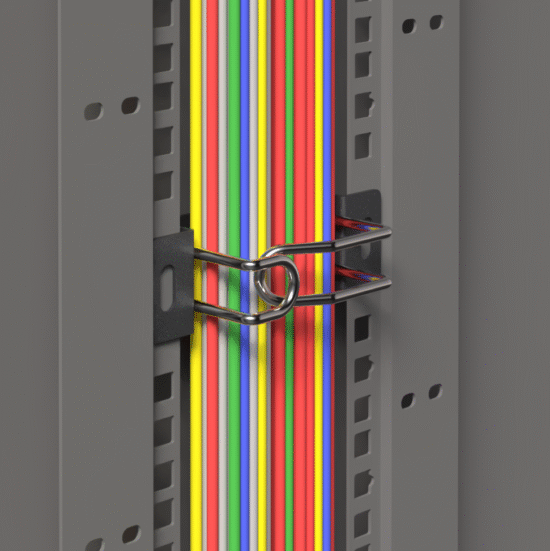

The hanger ring is mounted inside the base frame of the cabinet, positioned between the front door and the 19-inch equipment rails. This strategic placement allows for convenient routing and bundling of cables alongside rack-mounted devices, reducing cable strain and minimizing clutter.
For secure installation, it is recommended to affix the cable hanger rings using screws through the pre-drilled holes provided in the cabinet frame. This ensures the rings remain firmly in place, even under the weight of bundled cables or during routine cabinet maintenance.
Already bought this product from us? Share your experience on LinkedIn
- Enhances cable organization and separation for power and data lines
- Prevents tangling and damage to cables
- Supports improved cooling efficiency by maintaining clear airflow paths
- Simplifies future modifications and troubleshooting tasks
| Height (mm) | 35 |
| Width (mm) | 114.5 |
| Depth (mm) | 46 |
| Net Weight (kg) | 0.39 |
| Material – Base | Cold Rolled Steel |
| Material Thickness (mm) | 1.2 |
| Colour | Black RAL 9004 |
| Operating Temperature (°C) | -40 to +70 |
| Designed In Accordance With | TIA/EIA 568.C, ISO/IEC 11801, EN50173, IEC60304, IEC61754, EN297-1 Compliant to RoHS, Reach/SVHC |
Metal Vertical Cable Hanger Ring For Cabinets
