Briticom® Fibre Optic Mechanical Dome enclosures are used to protect and house fragile fibre splices and joints between cables. They can also be used to house splitters and patch connectors of splitters with fibre optic cables.
Already bought this product from us? Share your experience on LinkedIn
- IP68 & IK10 rating (Harsh environment & temperatures)
- 240 FO
- Very strong & robust shell
- Mechanical sealing cable entries
- RoHS materials
- Telecommunication networks
- LAN, MAN and WAN applications
- CATV – Cable television
- Fibre-To-The-Home (FTTH)

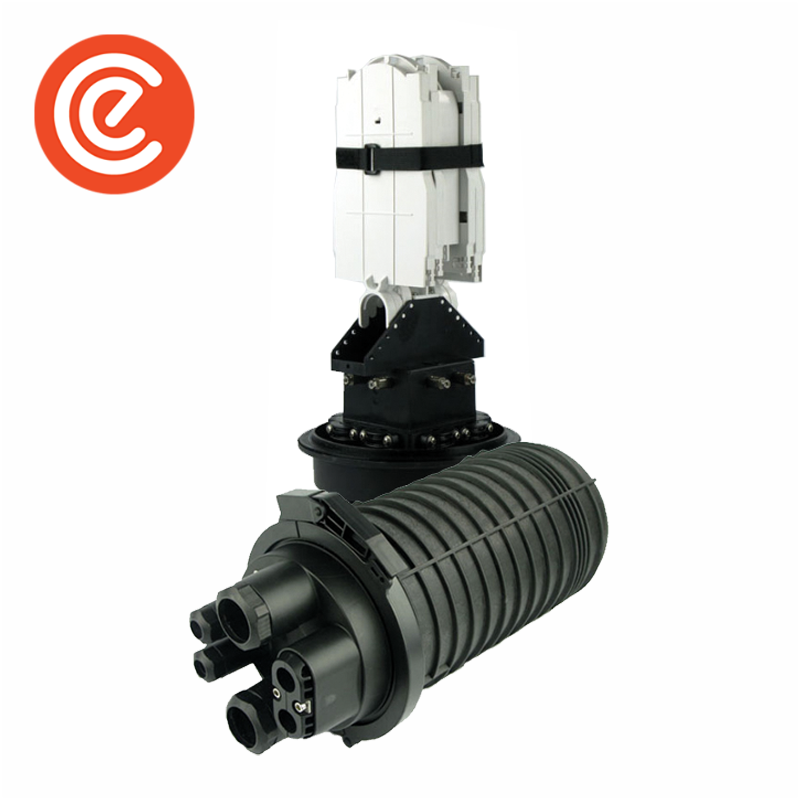

Fibre Optic Mechanical Dome Enclosure
| Usage | Aerial; Manhole; Wall; |
| Dimensions | (450×φ230)mm |
| Cable Entries | 4 entries @ 10-17.5mm, 2 entries @ 10-22mm |
| Weight | 3.8 ~ 4.3 Kg |
| Type of Seal | Mechanical |
| IP Rating | IP68 |
| Box Material | Polymer Modified Plastic |
| Sealing Material | Vulcanised Silicone Rubber |
| Splice capacity per tray | 24 |
| Maximum Splice Capacity per enclosure | 240 |
|
Included Accessories
|
Splice trays, cable ties, cable fixings, pole-mounting hoop, sandpaper, Sealing gasket, splice protection sleeves, silver paper, insulating tape |
