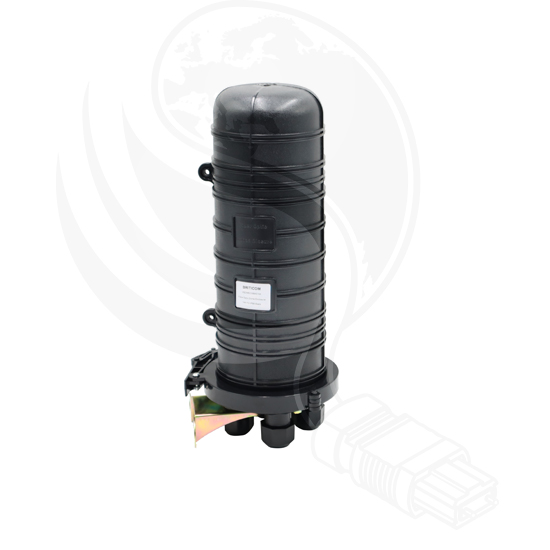

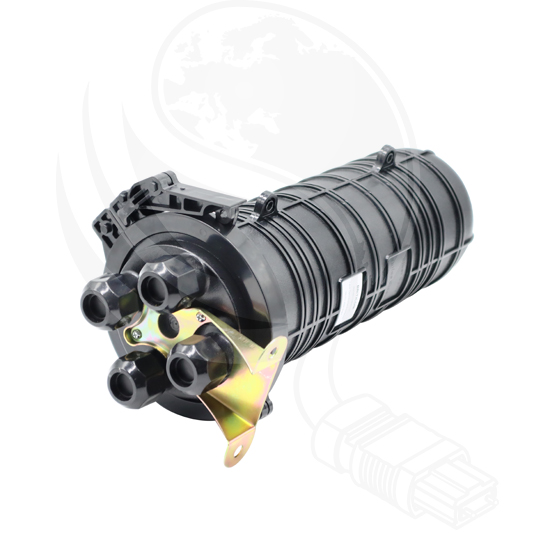

Mechanical Fibre Optic Dome Enclosure – Model 08 – 144 FO

Briticom® fibre optic splice enclosures are used to protect and house fragile fibre splices and joints between cables. They can also be used to house splitters and patch connectors of splitters with fibre optic cables.

Example PN MND08SG144 Categories: ,
  • IP68 & IK10 rating (harsh environment and temperatures)
  • 144 FO
  • Pole and manhole
  • Very strong and robust shell
  • 24 fibres per tray
  • Mechanical sealing
  • RoHS materials
  • Telecommunication networks
  • LAN, MAN and WAN applications
  • CATV – Cable television
  • Fibre-To-The-Home (FTTH)
Dimensions (mm) 420×140
Weight (kg) 2.8
Material PP alloy
Number of trays 1-4
Type of seal Mechanical
Max. capacity 144 fibres (splicing)

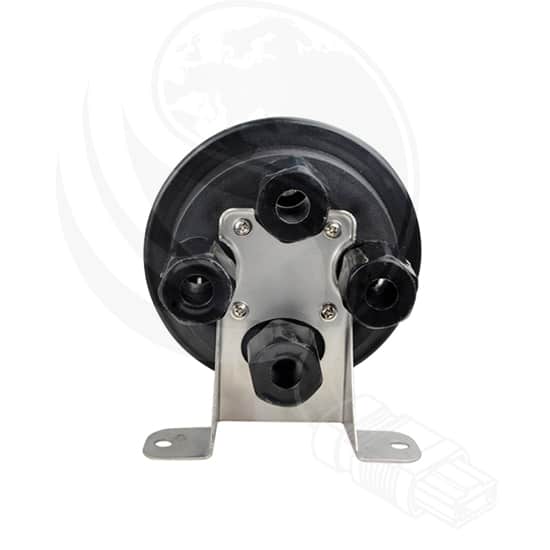

Cable inlet/outlet ports 2 inlet, 2 outlet
Operating temperature -40℃ to +60℃
Storage temperature -40℃ to +65℃
Application Pole and manhole
IP rating IP68
DOWNLOAD DATASHEET
Sealing Type

MN Mechanical, HS Heat Shrink
Direction of Use

D Dome, I Inline
Model

01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11, 12, 13, 14, 15
Product

ST Splitter, SG Splicing, SD Standard, SL Slimline, GL Gland
Max Splice Capacity

12, 16, 24, 32, 48, 72, 96, 108, 144, 180, 216, 240, 288, 480, 576
Splitter

1X8 (1X8 splitter), 1X16 (1X16 splitter), 1X32 (1X32 splitter), Not required
Adapter Type

SCA (SC APC), SCU (SC UPC), LCA (LC APC), LCU (LC UPC), No splitter
