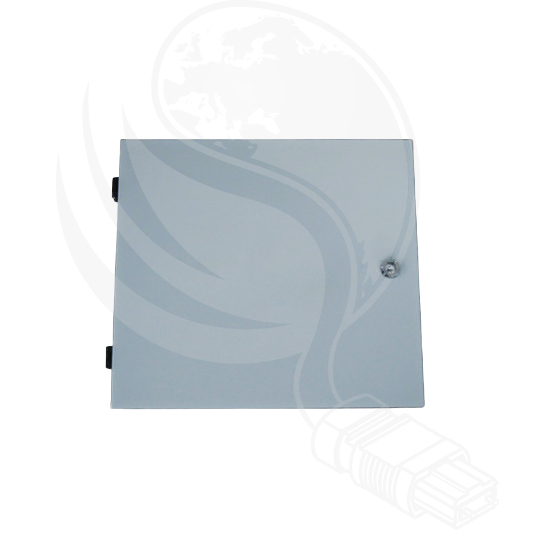

Briticom® Metal Splicing Distribution Outdoor Boxes are used for the easy-access and dispersion of fibre optic connections between networks.
Already bought this product from us? Share your experience on LinkedIn
- 36 FO
- Max 3 splice trays (12 FO each)
- IP65 for outdoor installations
- 4 + 2 cable entries
- UV Resistant
- RoHS materials
- Lockable door
- Telecommunication networks
- LAN, MAN and WAN applications
- CATV – Cable television
- Fibre-To-The-Home (FTTH)
| Material | SPCC cold-rolled steel with Lockable door |
| Dimensions | 420 x 380 x 126.3 mm |
| Max. Capacity | 36 |
| Max. Splice Tray Qty | 3pcs |
| Max. Splice Tray Capacity | 12 fibres SCSX |
| Weight (kg) | 3.6 ~ 4.0 |
| IP Rating | IP65 |
| Cable entries | 4 + 2 @ Φ 10 ~ 18mm |
Metal Splicing Distribution Outdoor Boxes
DOWNLOAD DATASHEET
