Briticom® Outdoor Splicing Distribution Box are used for the easy-access and distribution of fibre optic connections between networks.
Already bought this product from us? Share your experience on LinkedIn
- Waterproof
- IP55-rating
- 16 SC Connectors
- 32 LC Connectors
- Splice cassette and cable management rods
- Easy to maintain and extend capacity
- Fibre bend radius control >40mm
- Suitable for fusion or mechanical splice
- 2:1×8 or 1:1×16 splitter
- Efficient cable management
- 16 ports cable entrance for drop cable
- Telecommunication networks
- LAN, MAN and WAN applications
- CATV – Cable television
- Fibre-To-The-Home (FTTH)

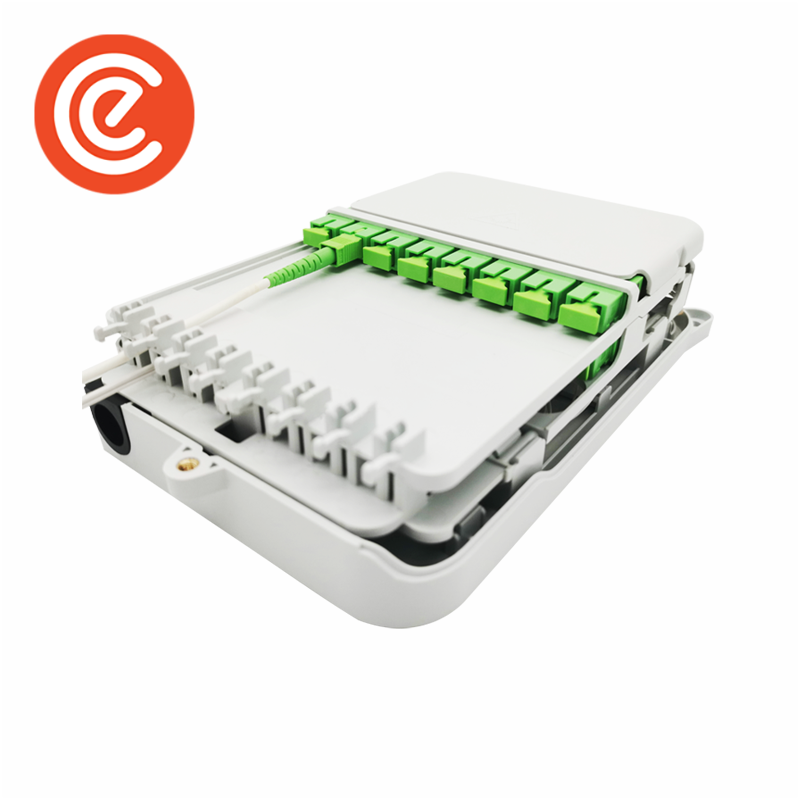

Outdoor Splicing Distribution Box
| Material | PC + ABS IP55 |
| Dimensions | 220 x 140 x 55mm |
| Max Capacity | 16 (SC connector) 32 (LC connectors) |
| PLC Splitter | 1×2, 1×4, 1×8, 1×16 mini-module PLC splitter 0.9mm 1 meter |
| Cable Port | 2 in 16 out |
| IP Rating | IP55 |
| Weight | 0.5 kg |
| Colour | Grey |
