Briticom® Outdoor Splicing Distribution 36FO Plastic Box is used for the easy-access and distribution of fibre optic connections between networks.
Already bought this product from us? Share your experience on LinkedIn
- 36 FO
- Wall or pole mount
- SC, LC and FC adapters
- IP65 rating
- RoHS materials
- Telecommunication networks
- LAN, MAN and WAN applications
- CATV – Cable television
- Fibre-To-The-Home (FTTH)

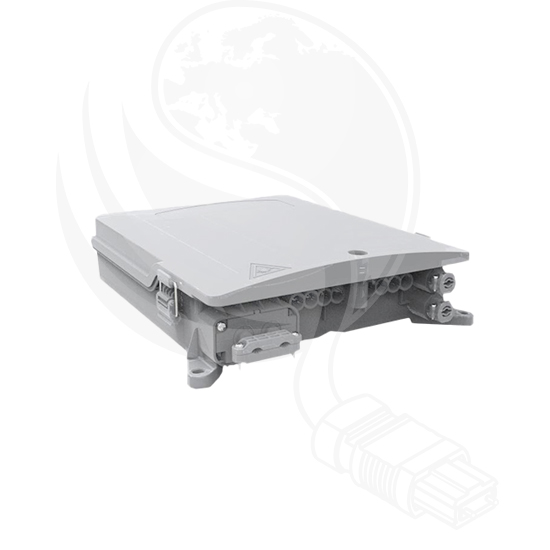

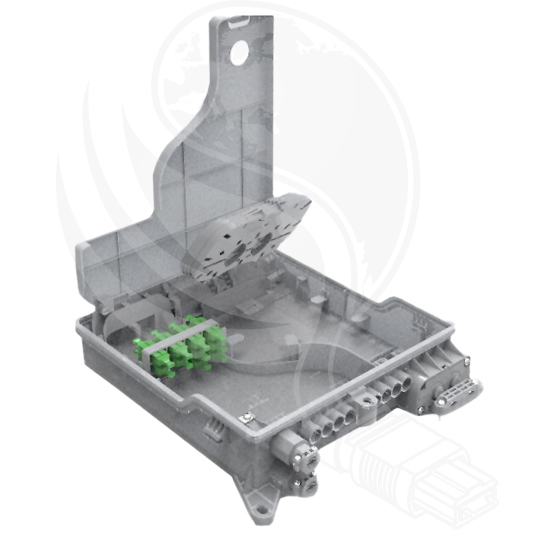

Outdoor Splicing Distribution 36FO Plastic Box
| Material | PC, ABS IP65 |
| Dimensions | 250 x 200 x 72 mm |
| Colour | Grey |
| IP Rated | IP65 |
| Max Adapters | 8 adapters SCSX |
| Max Core | 36 fibres |
| End-Use Temperature | -40 +85℃ |
| Insertion Loss | ≤ 0.2db (1310nm & 1550nm) |
| Weight (kg) | ~ 0.6 |
| Cable Diameter, Outlet Size, Entries | Ø 14 mm, Ø 2 ~ 5 mm, 2 in 8 out |
| PLC Splitter (PCS) | 1/8 x 1 |
