Briticom® fibre optic Pre-Polished Field Connectors are used in installation fields, where the installers must have a quick access to pre-polished ferrule with high performance low loss. It is quick, easy and reliable
Already bought this product from us? Share your experience on LinkedIn
- Complies with IEC 61754-20 and TIA 604-10-B, FOCIS-10 for inter-mate-ability
- Low insertion loss and back reflection
- Zirconia ceramic ferrule
- Easy quick & reliable pre-polished connector
- RoHS materials
- Telecommunication networks
- LAN, MAN and WAN
- Data centres
- CATV – Cable television
- Fibre-to-the-Home – FTTH

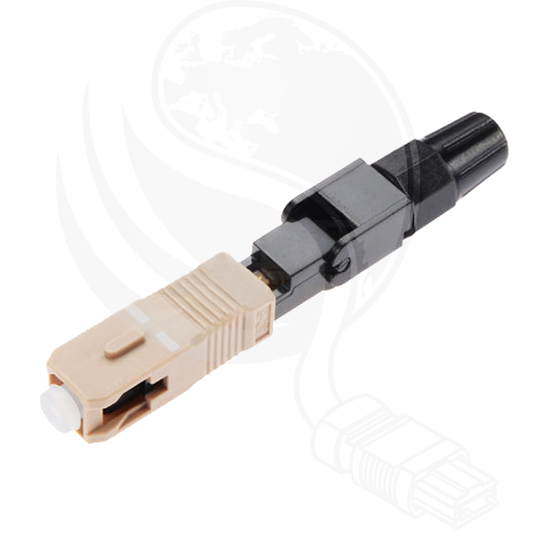

Pre-Polished Field Connectors
| SC field connector | Single-mode (UPC) | Single-mode (APC) | Multimode |
| Insertion loss | ≤ 0.2db | ≤ 0.2db | ≤ 0.25db |
| Return loss | ≥ 0.55db | ≥ 0.65db | ≥ 0.30db |
| Durability | ≤ 0.2db typical change, 1000 times mating | ||
| Operating Temperature | -45 to +85 degree | ||
| Concentricity | ≤1.0um | ≤0.50um | ≤3.0um |
| Jacket thickness | 900um to 3mm | ||
| Materials | UL rated plastic housing | ||
