Briticom® Flat 24-Port UTP Patch Panel offers a perfect solution for high density applications. This panel offers excellent help for organisation, provided 24 ports which are organised into four modular panels which can be easily labelled.
Already bought this product from us? Share your experience on LinkedIn
- Rear organiser for tidier cable management at the back
- 24 modular ports, divided into four modular panels
- 24 labels, organised into 4 colours
- Earthing/grounding
- Available in 1U
- ANSI/TIA-568-C.2 Standard of 2009
- ANSI/TIA-568.0-D Standard of 2017
- Data & Server Racking
- Cat 6a, Cat 6 or Cat 5e RJ45 Modular Jacks
- Data Centres & LAN installations

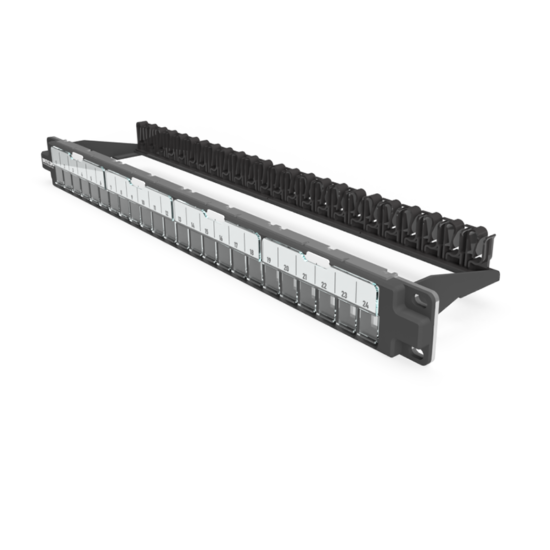

Flat 24-Port UTP Patch Panel
| Norms | ISO/IEC 11801 3rd Ed., EN 50173-1, ANSI/TIA-568-C.2, ANSI/TIA-568.0-D |
| Housing Material | 1.5 mm SPCC cold rolled steel sheet, powder-coated |
| Material Standard | EN 10 130(1991), BS 1449, NFA 36/401, DIN 1623, UNI 5866, ASTM, SAE, NFA 36/401 |
| Grounding | Central ground connection |
| Operation Temperature | -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA-568-C.2) |
| Size (mm) | 483(w) x 44.5(h) x 95(d) |
