Briticom® CAT 6A V Foldable 1U Patch Panels are designed to meet and exceed the ISO, CENELEC and TIA standards including, ANSI/TIA-568-C.2 Standard of 2009 and ANSI/TIA-568.0-D Standard of 2017. Delivering Class FA link and channel performance supporting all applications detailed and proposed within the standards.
Already bought this product from us? Share your experience on LinkedIn
- 500 Mhz with over 10Gbps
- Earthing/Grounding
- 24 ports and 48 cable positions
- 50μm gold plated ports, bronze plated shielding
- V Angled design for better cable management
- 1U height; 19’’ width
- ANSI/TIA-568-C.2 Standard of 2009
- ANSI/TIA-568.0-D Standard of 2017
- Data centres
- Telecommunication networks
- LAN

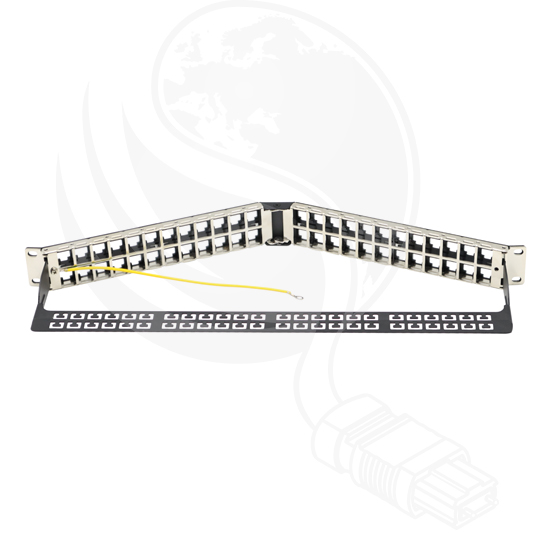

CAT 6A V Foldable 1U Patch Panels
| Norms | ISO/IEC 11801 2nd Ed., EN 50173-1, ANSI/TIA-568-C.2, ANSI/TIA-568.0-D, 802.3af, 802.3at PoE+ |
| Housing material | 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110 |
| Installation | Cable installation via LSA strips, colour coded according to EIA/TIA 568 A & B |
| Dielectric strength | 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground) |
| Mating Cycles Female | > 750 acc. to ISO/IEC 11801, IEC 60603-7-5 |
| RJ45 Female Material | ABS UL 94V-0 |
| RJ45 Female Contact | Tinned phosphor bronze, 0.5 μ gold-plated contact |
| LSA Termination Clamp | Krone LSA+, UL 94V-2, zinc plated phosphor bronze |
| Conductor Plate | FR4, UL 94V-0 |
| Insertion Force | 30N max. (IEC 60603-7-5) |
| Clamp | > 200 acc. to ISO/IEC 11801, IEC 60603-7-5 |
| IDC Wire Size | 22 – 26 AWG solid and stranded conductor |
| Insulation & Contact Resistance | > 500 MOhm & < 20 MilliOhm |
