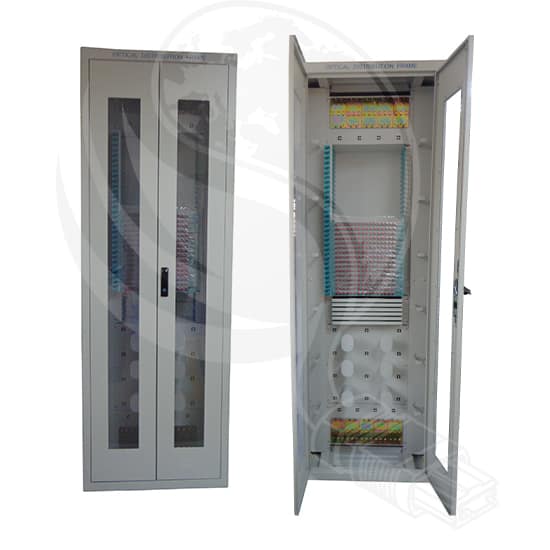

Briticom® fibre optic indoor cabinets and frames are used to house and protect fibre optic cables for pass through, reservation and fibre distribution.
Already bought this product from us? Share your experience on LinkedIn
- Max FO Capacity 512
- Allows quick installation of fibre optic cable
- Capacity can be adjusted as necessary
- Built-in direct splice unit
- RoHS materials
- Lockable Door
- Glass or solid front door
- Telecommunication networks
- LAN, MAN and WAN applications
- CATV – Cable television
- Fibre-to-the-Home (FTTH)
| Material | Cold-Rolled Steel |
| Dimensions | 750 x 2200 x 600mm |
| Splice Tray Qty. | 32 pcs |
| Max Capacity | 512 Fibres |
| Available in Different Heights | 37U, 42U, 47U |
| Cable management | Side-mounted cable spool |
| Weight | 135kg |
| Nominal Work Wave-Length | 850nm, 1310nm, 1550nm |
| Operating Temperature | -10ºC + 60ºC |
| Storage Temperature | -40ºC +70ºC |
| Relative Humidity | ≤85%(+30ºC) |
| Atmospheric Pressure | 70~106 KPa |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥45dB (PC), ≥50dB (UPC), ≥60dB (APC) |
| Isolation Resistance | ≥1000MΩ/500V(DC) |
| Durability | >1000 times |
| Anti-Voltage Strength | ≥3000V(DC)/1min |
Fibre Indoor Cabinet
