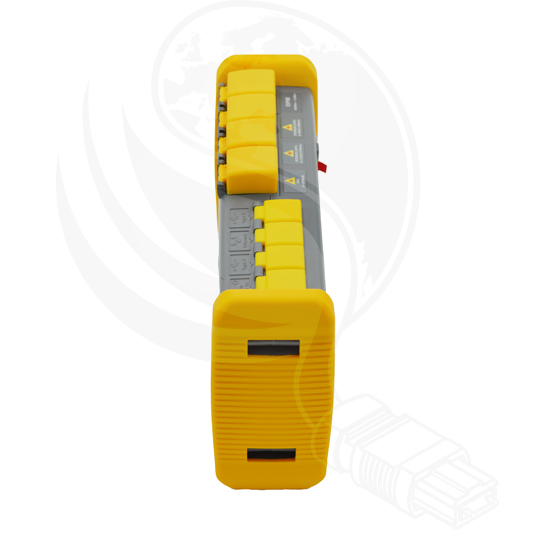

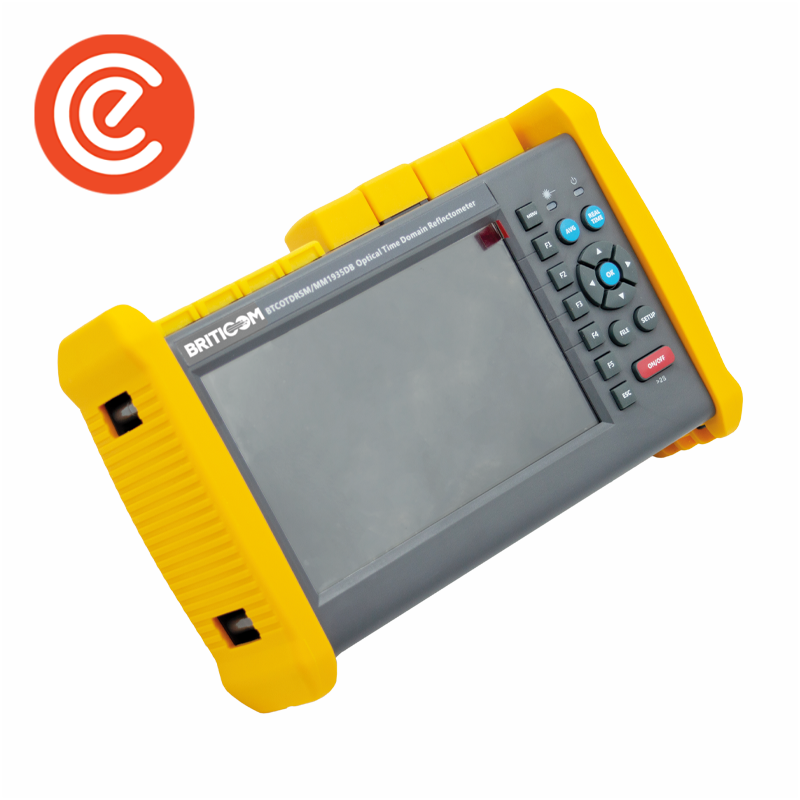

The Briticom® OTDR is an optoelectronic instrument used to characterise an optical fibre. This OTDR is specially designed for tough outdoor jobs, so is perfect for field testing – it is lightweight, easy to operate, has an IP65 protection level, low-reflection LCD and the battery lasts up to 12 hours. The optional PCB board with water-proof coating can increase the protection performance.
Already bought this product from us? Share your experience on LinkedIn
- Integrated design, smart and rugged
- IP65 Rating
- 7-Inch LCD screen – anti-reflection
- PON online test module (1625nm) (optional)
- MMF test module (850/1300nm) (optional)
- Supports multi-language display and input
| Dimension | 253x168x73.6mm 1.5kg (battery included) |
| Display | 7-inch TFT-LCD with LED backlight (touch screen function is optional) |

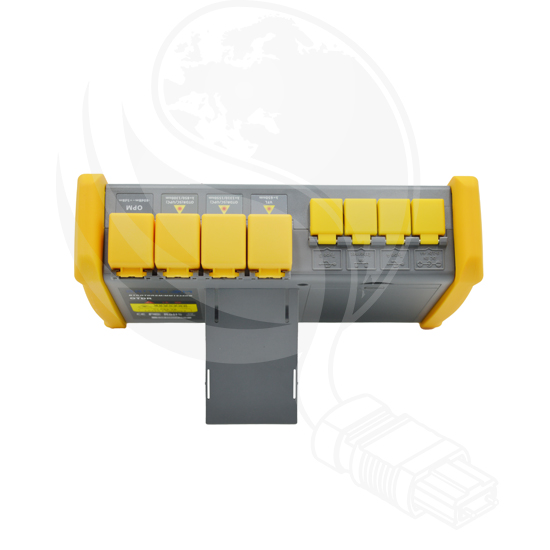

| Interface | 1xRJ45, 3xUSB port (USB2.0, Type A USBx2, Type B USBx1) |
| Power Supply | 10v(dc), 100V(ac) to 240V(ac), 50~60hz |
| Battery | 7.4V(dc)/4.4Ah lithium battery (with air traffic certification) Operating Time: Up to 12 hours, Telecordia GR-196-CORE Charging time: <4 hours (power off) |
| Power Saving | Backlight off: Disable/1 to 99minutes Auto shutdown: Disable/1 to 99minutes |
| Data Storage | Internal memory: 4GB (about 40,000 groups of curves) |
| Language | User selectable (English, Simplified Chinese, Traditional Chinese, French, Korean, Russian, Spanish and Portuguese –contact us for the availability of others) |
| Environmental Conditions | Operating temperature and humidity: -10°C ~ +50°C, ≤95% (non-condensation) Storage Temperature and humidity: -20°C ~ +75°C, ≤95% (non-condensation) Waterproof/Dustproof: IP65(IEC 60529) |
| Accessories | Standard: Main unit, power adapter, Lithium battery, FC adapter, USB cord, User guide, CD disk, carrying case Optional: SC/ST/LC adapter, Bare fibre adapter |
