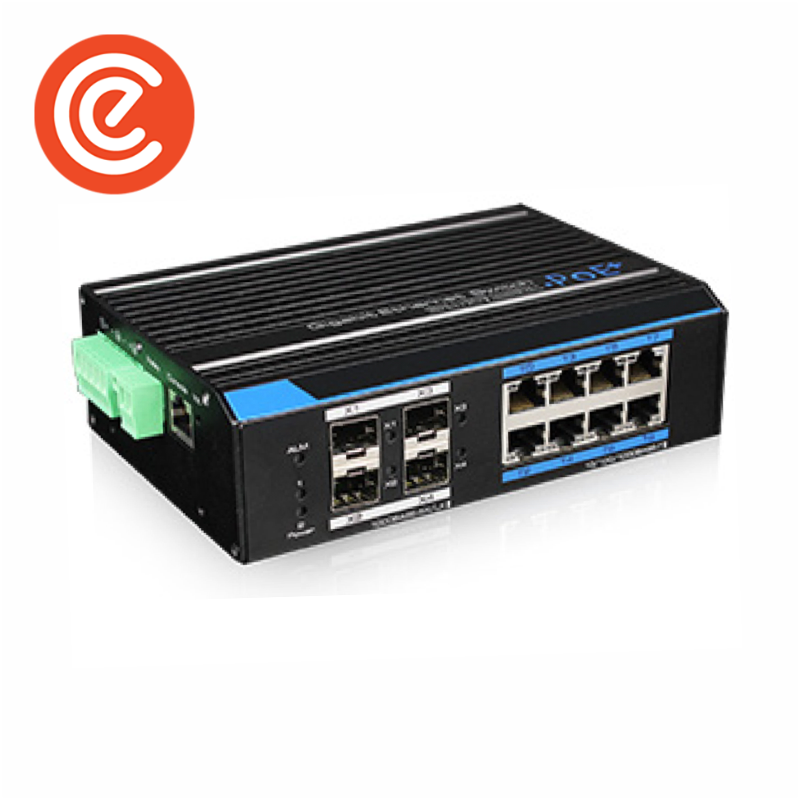

This Briticom® PoE Industrial Switch 8-Port has 8×10 / 100 / 1000 Base-T RJ45 ports (PoE), 4 x 1000 BASE-X SFP ports (Unlinks). The switch provides up to 4Mbit cache and supports 4K high-definition video transmission.
Already bought this PoE Industrial Switch 8-Port from us? Share your experience on LinkedIn
- Provide 8×10/100/1000Base-T RJ45 ports (PoE), 4x1000BASE-X SFP ports (Uplinks)
- Buffer reaches 4Mbit, Support 4K high-definition video transmission
- PoE function: 1 port 60W HPoE; 7 ports 30W PoE
- Support web-based network management, support VLAN, QoS, RSTP, SNMP etc. network function
- Support fast ring, support 30 pcs switches max. in a cascade system, self-healing in 20ms min
- Support relay alarm for power off, network broken, PoE off
- 6KV surge immunity, 8KV ESD protection and anti-interference ability
- LAN Applications
- Surveillance
| Downlink Ports | 8* 10/100/1000Base-T PoE RJ45 ports |
| Uplink Ports | 4*1000Base-X SFP ports |
| Standard and Protocols | IEEE 802.3, IEEE802.3u, IEEE 802.3ab, IEEE802.3z, IEEE802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1Q, IEEE 802.1D, IEEE 802.1p, IEEE 802.1x IEC61000-4-5 IEC61000-4-2 IEC61000-4-4 |
| Switching Capacity | 24Gbps |
| Packet Forwarding Rate | 18Mpps |
| Forwarding Modes | Store and Forward |
| Packet Buffer | 4M |
| MAC Address Table | 8K |
| PoE Standard | 802.3af/at |
| PoE Power Method | End-span |
| PoE Line Pair | 1/2(+), 3/6(-) |
| PoE Output Power | Port T1 60W HPoE, Port T2~T8 are standard PoE (30W) |
| Alarm Signal Output by Relay | Support relay alarm for power off, ports network link-off, ports PoE off (Set by Web Software) |
| Surge Immunity | 6KV Per: IEC61000-4-5 |
| ESD Immunity | ESD Level 4 Per: IEC61000-4-2 FT Level 4 Per: IEC61000-4-4 |
| Input Voltage | 48~57V DC |
| Power Consumption | Self consumption <15W |
| Operation Temperature | -40℃~75℃ |
| Storage Temperature | -40℃~85℃ |
| Operation Humidity | 5%-95% (No- condensation) |
| Dimension (LxWxH) | 159mm×110mm×46.5mm |
| Weight | 750g |
| MTBF | 330000 Hour |
| Certification | CE, FCC, ROHS |
| Port Management | Support Port Enable/Disable; Support Port Rate Settings; Support Port Full-duplex Mode; Support IEEE802.3x Flow Control; Support Port Name Change; |
| VLAN | Support 4K VLAN Support 802.1Q Protocol-Based VLAN; Support Port-Based VLAN; |
| QoS | Support QoS; Support 8-Level Priority management for switching; Support WRR; Support 820.1P and DSCP Priority; |
| Multicast Management | Support SNMP V1/V2/V3 Protocol; Support IGMP Snooping; |
| POE Management | Support Total Power Consumption Control; Support PoE ON/OFF; Support Single Port 60W max. Power Change and Port Output Priority; |
| Alarm Signal Output by Relay | Support relay alarm for power off, ports network link-off , ports PoE off |
