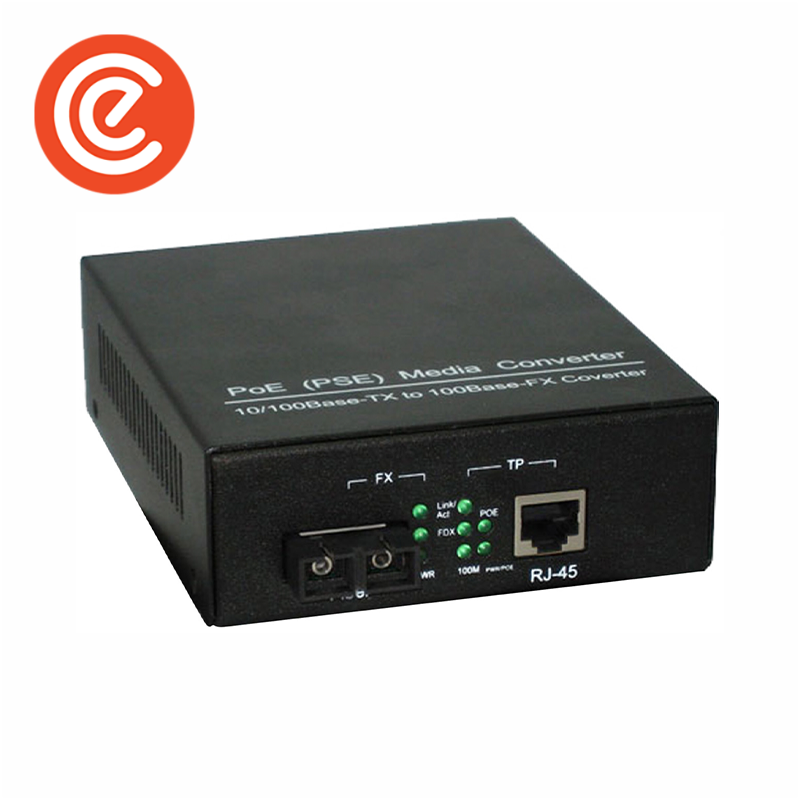

Briticom® PoE Media Converter single mode to multi-mode allows the switching of fibre types between two media converters. We offer these in both dual fibre to dual fibre and SFP to SFP types, to allow easier changes to the network. With up to 1.4Gbps data rate and built in RAM for data buffer it makes the ideal solution for LAN Applications.
Already bought this PoE Media Converter from us? Share your experience on LinkedIn
- Up to 1.4Gbps data rate
- Transmissions available: 10/100M, 10/100/1000M or 1000M FDX/HDX
- Supports full and half-duplex
- Transmission distances from 550m to 120km
- Built in RAM for data buffer
- IEEE802.3af PoE PSE compatible
- LAN Applications
| Data | 10/ 100 Mbps (802.3 10Base-T/802.3u 100Base-T)
100Mbps (100Base-FX) |
| Input Voltage | 100VAC to 240VAC |
| Input Frequency | 47Hz to 63Hz |
| Pin Assignment and Polarity | 4/ 5 (V+), 7/ 8 (V-) |
| Output Power Efficiency | 75% min |
| Short Circuit Protection | Auto recovery |
| Over Current Protection | Auto recovery |
| Operating Temperature (°C) | 0 to +50 |
| Cooling | Free air convection |
| Storage Temperature (°C) | -20 to +85 |
| Operating Humidity | 90% max, non-condensing |
| Case Material | Iron |
| Case Colour | Black |
| Net Weight | 540g Approx. |
| Dimensions (mm) | 110 (W) x 40(H) x 140(L) |
| Connectors | AC InletIEC-J-4
LAN. Shielded RJ-45 |
