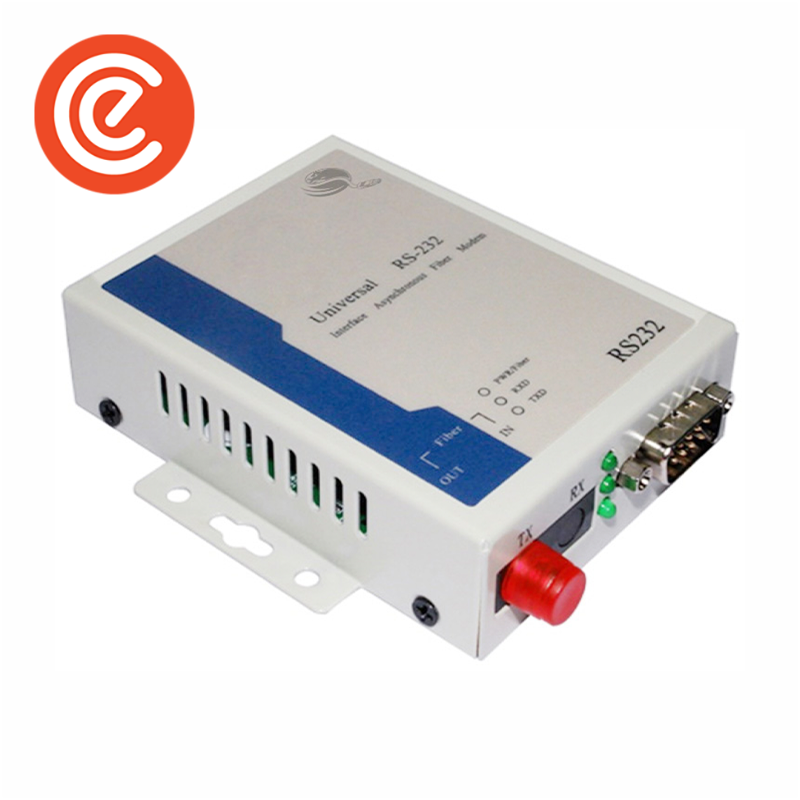

Briticom® RS232 To Fo Media Converter is a versatile RS- 232 interface fibre optic MODEM. It is best choice for connecting a remote terminal unit (RTU) to a host (HOST) or a distributed data acquisition system (SCADA) controller. The product uses optical fibre as the transmission medium, improving the transmission performance of the system, effectively avoiding the harsh environment of lightning, surge and electromagnetic interference on communications equipment. This product has features such as zero delay and a Simplex FC Optical Port. It also has Anti-surge protection – 1500W, 15KV electrostatic protection.
Already bought this RS232 To Fo Media Converter from us? Share your experience on LinkedIn
- Zero delay
- Asynchronous transmission, point to point use, RS232 interface and fibre conversion
- Automatically detect the serial port rate, identify and control the direction of data transmission
- Simplex SC optical port
- Anti-surge protection – 1500W, 15KV electrostatic protection
| Fibre Type | Single Mode, Multi Mode |
| Communication Rate | 120 Kbps max. |
| Fibre Optic Interface Type | FC Simplex |
| Wavelength | 1310nm |
| Transmission Distance
Single Mode Multi-Mode |
20km / 40km or 80km 0-500m |
| Min TX PWR | -17.0 dBm |
| Max TX PWR | -8.0 dB, |
| Sensitivity | -31.0 dBm |
| Link Budget | 14.0 dBm |
| RS232 Port Transmission Distance | 15m |
| Power Supply | AC 100 – 240V, DC 5V |
