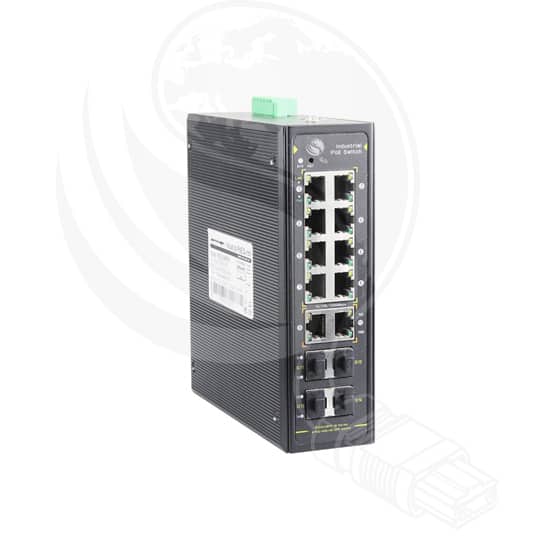

Briticom® L2+ PoE Industrial Switch – 14-Port with 10 x 10/100/1000M RJ45 ports and 4 x 100/1000M uplink SFP slot ports, Port 1-8 can support IEEE802.3af/ at PoE. Support DC dual power supply input and DIN rail mounting.
Already bought this PoE Industrial Switch – 14-Port from us? Share your experience on LinkedIn
- Built-in 240W power supply
- DC dual input port
- 10 x 10/100/1000M RJ45 ports
- 4 x 100/1000M uplink SFP slot ports
- Port 1-8 can support IEEE802.3af/at PoE
- LAN Applications
Continued on datasheet
| Fixed Port | 8*10/100/1000Base-T PoE ports (Data/Power); 2*10/100/1000Base-T uplink RJ45 ports (Data); 4*100/1000Base-X uplink SFP slot ports (Data); 1 * RS232 console port(115200,N,8,1); 2 set of V+, V- redundant DC power interface (6 Pin Phoenix terminal); Power-off alarm switch (FAULT) |
| Ethernet Port | 10/100/1000Base-T,Auto-sensing,Full/half duplex MDI/MDI-X self-adaption |
| SFP Slot Port | Gigabit SFP optical fibre interface, default matching optical modules (optional order single-mode / multi-mode, single fibre / dual fibre optical module. LC) |
| Network Management Type | L2+ |
| Network Protocol | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX/FX; IEEE802.3ab 1000Base-TX; IEEE802.3z 1000Base-X; IEEE802.3x |
| Switching Capacity | 256Gbps |
| Forwarding Rate@64byte | 20.83Mpps |
| MAC | 8K |
| Buffer Memory | 6M |
| Jumbo Frame | 9.6K |
Continued on datasheet
