Briticom ® offers Round Loose-Tube Drop Cable as well as a wide range of indoor and outdoor fibre optic distribution, patching and consumer cord including Plenum, Riser and LSZH in all diameters. These are used to provide links to protocols such as FTTH, FDDI, 10 Gigabit Ethernet, ATM. This product is available in many different colours, thicknesses and constructions, including armoured. It is ideal for telecommunications applications such as CATV Cable Television, Fibre to the Home (FTTH) and networks. Briticom ® also offers a wide range of other Indoor Cables as well as a variety of Fibre Optic solutions.
Already bought this product from us? Share your experience on LinkedIn
- Available in many colours, thicknesses and constructions (including armoured)
- Easy Strip Tight Buffer
- Telecommunication networks
- CATV – Cable television
- Fibre To The Home (FTTH)
- Wall outlets to Desk

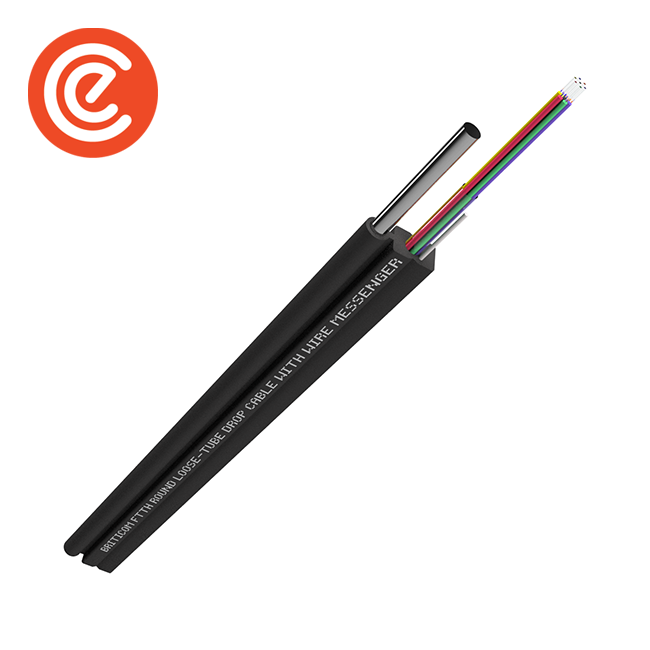

Round Loose-Tube Drop Cable
| Fibre Count | 12 |
| Outer Diameter (mm) | 5.4 to 7.3mm |
| Weight per Km | 85 to 95 kg |
| Max Tensile Strength (N) | Installation 2000N (IEC 60794-1-2-E1) Operation 1000N (IEC 60794-1-2-E1) |
| Max Crush Resistance | 300 / 1000 N |
| Min. Bend Radius (mm)
Static Dynamic |
20 x D (IEC 60794-1-2-E11A) 10 x D (IEC 60794-1-2-E11A) |
| Operating Temp. (⁰C) | -20 to 60 |
