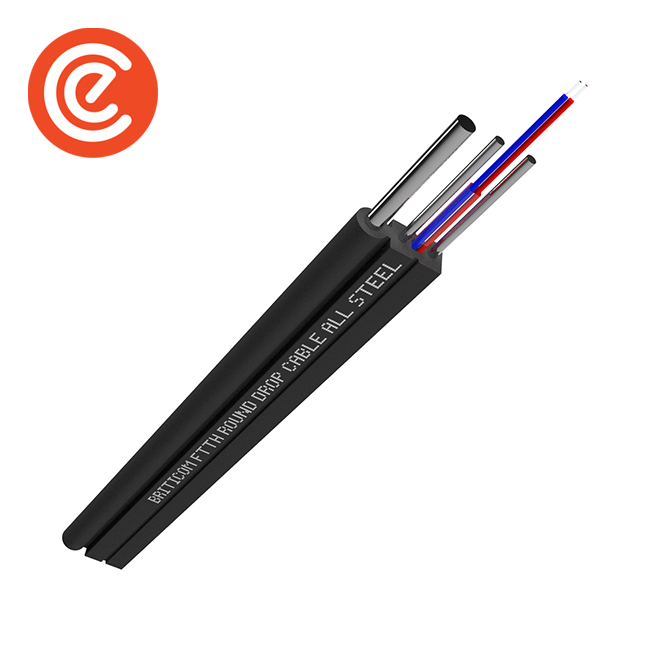

Briticom ® offers FTTH Drop Cable Steel as well as a wide range of indoor and outdoor fibre optic distribution, patching and consumer cables including Plenum, Riser and LSZH in all diameters. These are used to provide links to protocols such as FTTH, FDDI, 10 Gigabit Ethernet, ATM. This cable is available in many colours thicknesses and constructions (including armoured options). It is suitable for many different applications including fibre to the home (FTTH), CATV Cable Television and telecommunication networks. Briticom ® also offers a wide range of the Fibre Optic products as well as Indoor and Outdoor Cables.
Already bought this product from us? Share your experience on LinkedIn
- Available in many colours, thicknesses and constructions (including armoured option)
- Easy Strip Tight Buffer
- Telecommunication networks
- CATV – Cable television
- Fibre To The Home (FTTH)
- Wall outlets to Desk
| Model | 1 | 2 | 3 | 4 |
| Cable Size (mm) | (2.0 ± 0.1) x (5.0 ± 0.3) | |||
| Cable Weight (kg / km) | 18.9 | 21 | ||
| Tensile Strength (N)
Long Term Short Term |
300 600 |
|||
| Crush Resistance (N/100mm)
Long Term Short Term |
1000 2000 |
|||
| Bending Radius (mm)
Static Dynamic |
15 30 |
|||
| Span | 50 – 80 m | |||
| Operating Temperature (°C) | -20 ~ 60 | |||
