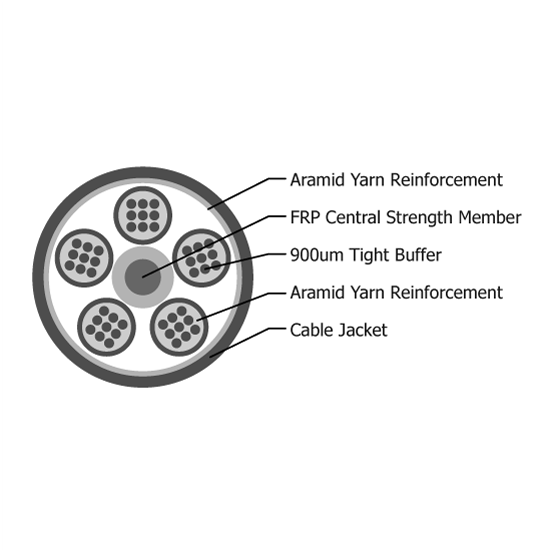

In Tight Buffered Multi Tube Cable the fibres are bundled together, with an outer jacket protecting them. The buffered fibre in distribution cable is 900μm, which is smaller in size and costs less than breakout cable. Distribution cable is usually installed in intra-building backbone and inter-building campus locations. Available in many colours and with double sheathing this cable is ideal for data centre and telecommunications networks as well as fibre to the home solutions and connections between patch panels & boxes.
Already bought this product from us? Share your experience on LinkedIn
- Multi Tube – Tight Buffered
- Easy Strip Tight Buffer
- Available with double sheathing
- Available in many colours
- Data centre & Telecommunication networks
- Fibre To The Home (FTTH)
- Connections between patch panels & boxes
Tight Buffered Multi Tube Cable
| Outer Sheath | PE or LSZH | ||||
| Fibre Count | 36 | 48 | 72 | 96 | 144 |
| Outer Diameter (mm) | 19 ± 0.8 | 20 ± 0.8 | 21 ± 0.8 | 25.5 ± 0.8 | 28.2 ± 0.8 |
| Weight per Km | 210kg | 250kg | 300kg | 460kg | 680kg |
| Fibre Count per Unit | 6 | 8 | 12 | 16 | 24 |
| Max Tensile Strength (N) | 1300 | ||||
| Min. Bend Radius (mm)
Dynamic Static |
20D 10D |
||||
| Max Crush Resistance (N/100mm2) | 1000 | ||||
| Span | 50-80 m | ||||
| Operating Temp. (⁰C) | -25 to 60 | ||||
