Briticom ® offers Armoured Butterfly-Shaped Cable as well as a wide range of indoor and outdoor fibre optic distribution, patching and consumer cords including Plenum, Riser and LSZH in all diameters. These are used to provide links to protocols such as FTTH, FDDI, 10 Gigabit Ethernet, ATM. This cable is available to buy in many different colours, thicknesses and constructions including armoured. It is ideal for applications such as telecommunications networks, Fibre to the Home (FTTH) and CATV Cable TV. It has an outer diameter of 6.8mm and weighs 47kg per Kilometer. Briticom ® offers a wide range of Fibre to the Home (FTTH) Indoor Cables as well as a vast selection of other Fibre Optic solutions.
Already bought this product from us? Share your experience on LinkedIn
- Available in many colours, thicknesses and constructions (including armoured)
- Easy Strip Tight Buffer
- Telecommunication networks
- CATV – Cable television
- Fibre To The Home (FTTH)
- Wall outlets to Desk

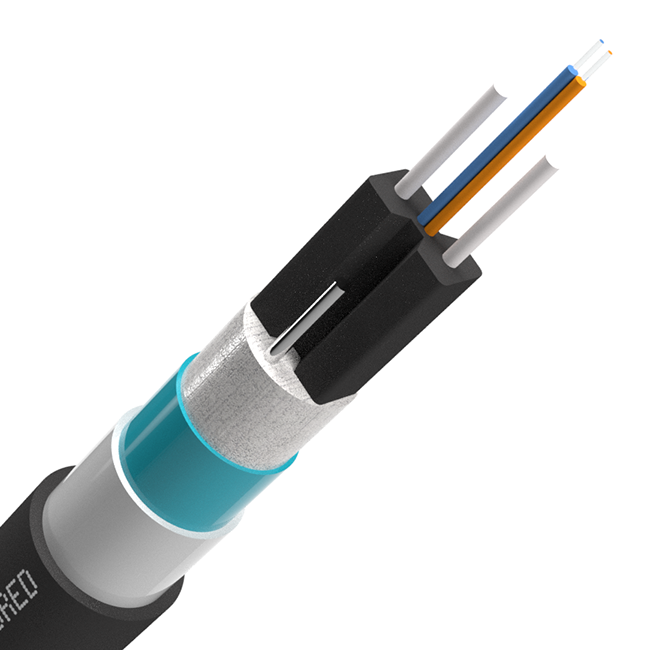

Armoured Butterfly-Shaped Cable
| Fibre Count | 1 to 2 |
| Outer Diameter (mm) | 6.8 |
| Weight per Km | 47kg |
| Max Tensile Strength (N) | 200 |
| Min. Bend Radius (mm)
Dynamic Static |
20 10 |
| Span | 50 – 80 m |
| Max Crush Resistance | 1000 N |
| Operating Temp. (⁰C) | -20 to 60 |
