Briticom® 1 Fibre Simplex Patch Cable provide links to protocols such as FTTH, FDDI, 10 Gigabit Ethernet, ATM, and Fibre Channel. Connections are easy to terminate with this flexible, single fibre design. We offer a wide range of simplex patching cables including Plenum, Riser and LSZH in all diameters. With an easy tight strip buffer and available in many thicknesses, colours and constructions this single fibre cable is ideal for fibre to the home (FTTH) applications as well as CATV Cable Television, Data Centres and Telecommunications Networks.
Already bought this product from us? Share your experience on LinkedIn
- Available in many colours, thicknesses and constructions (including armoured)
- Easy Strip Tight Buffer

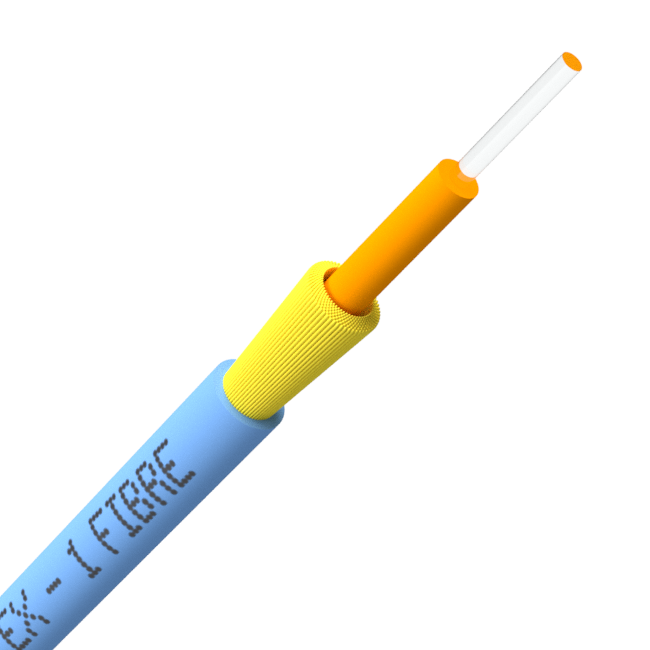

1 Fibre Simplex Patch Cable
- Data centre & Telecommunication networks
- CATV – Cable television
- Fibre To The Home (FTTH)
- ODFs to Wall outlets, Wall outlets to Desk
- Connections between patch panels & boxes
| Outer Diameter | 1.6mm | 1.8mm | 2.0mm | 2.4mm | 3.0mm |
| Weight per Km | 2.90Kg | 3.20Kg | 3.50Kg | 5.00Kg | 6.80Kg |
| Max Tensile Strength (N)
Long Term Short Term |
40 80 |
40 80 |
60 100 |
60 100 |
80 150 |
| Mini Bend Radius (mm)
Dynamic Static |
20D 10D |
||||
| Max Crush Resistance | 500 / 1000 N | ||||
| Operating Temp. (⁰C) | -25 to 70 (IEC 61754 – 4) | ||||
