Briticom ® Flat Drop Steel FRP Cable is available in many colours, thicknesses and constructions including the choice of an armoured option. We offer a wide range of indoor and outdoor fibre optic distribution, patching and consumer cables including Plenum, Riser and LSZH in all diameters. These are used to provide links to protocols such as FTTH, FDDI, 10 Gigabit Ethernet, ATM. This product is suitable for applications such as CATV Cable Television, Fibre to the Home (FTTH) and telecommunication networks. Briticom ® also offers a variety of other Indoor Cables as well as an extensive range of Fibre Products.
Already bought this product from us? Share your experience on LinkedIn
- Available in many colours, thicknesses and constructions (including armoured)
- Easy Strip Tight Buffer
- Telecommunication networks
- CATV – Cable television
- Fibre-To-The-Home (FTTH)
- Wall outlets to Desk

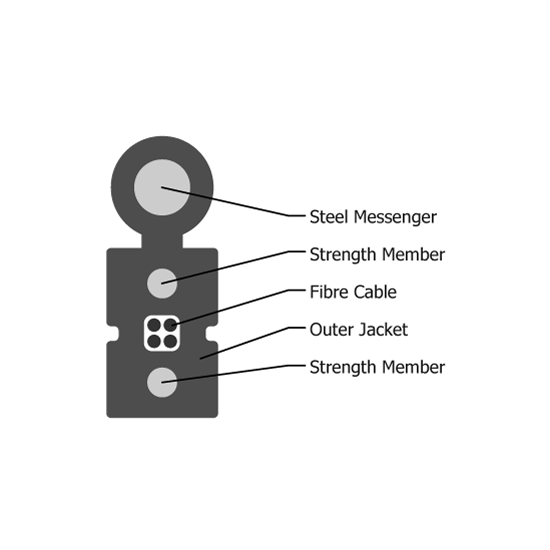

Flat Drop Steel FRP
| Outer Diameter | 1 FO | 2 FO | 4 FO | 6 FO | 8 FO |
| Weight per Km | 20Kg | 20Kg | 20Kg | 20Kg | 22Kg |
| Max Tensile Strength (N)
Long Term Short Term |
300 600 |
300 600 |
300 600 |
300 600 |
300 600 |
| Min. Bend Radius (mm)
Dynamic Static |
60 30 |
||||
| Span | 50-80 m | ||||
| Max Crush Resistance | 2200 N | ||||
| Operating Temp. (⁰C) | -25 to 70 (IEC 61754-4) | ||||
