Briticom ® offers Bow-Type Drop Ribbon Cable as well as a wide range of indoor and outdoor fibre optic distribution, patching and consumer cords including Plenum, Riser and LSZH in all diameters. These are used to provide links to protocols such as Fibre to the Home (FTTH), FDDI, 10 Gigabit Ethernet, ATM. This product is available in many different colours, thicknesses and constructions including armoured. It is ideal for many telecommunications applications including CATV Cable Television, Fibre to the Home (FTTH) and Wall outlets to desks. As well as this item Briticom ® also offers a wide range of other Fibre to the Home products as well as an extensive selection of Fibre Optic products.
Already bought this product from us? Share your experience on LinkedIn
- Available in many colours, thicknesses and constructions (including armoured)
- Easy Strip Tight Buffer
- Telecommunication networks
- CATV – Cable television
- Fibre To The Home (FTTH)
- Wall outlets to Desk

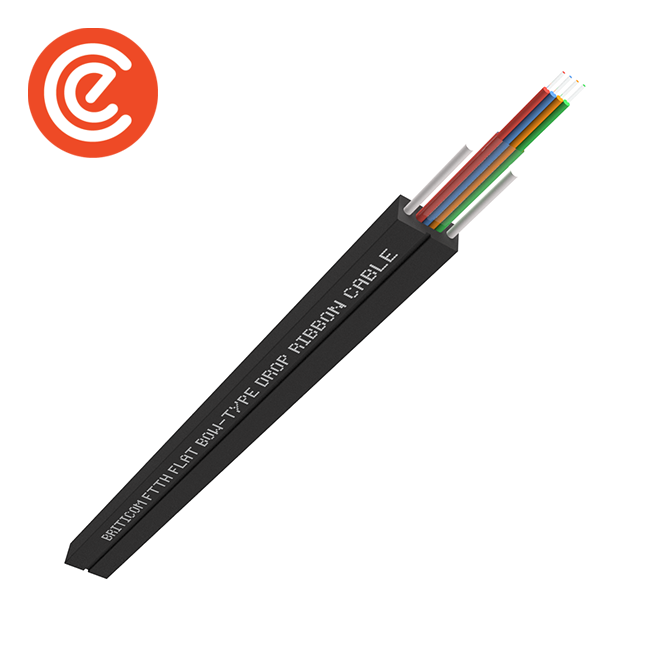

Bow-Type Drop Ribbon Cable
| Fibre Count | 4 |
| Outer Diameter (mm) | 4.0 x 2.0 |
| Weight per Km | 12kg |
| Max Tensile Strength (N) | 80 |
| Min. Bend Radius (mm)
Dynamic Static |
60 30 |
| Max Crush Resistance | 300 / 1000 N |
| Span | 50 m |
| Operating Temp. (⁰C) | -20 to 60 |
