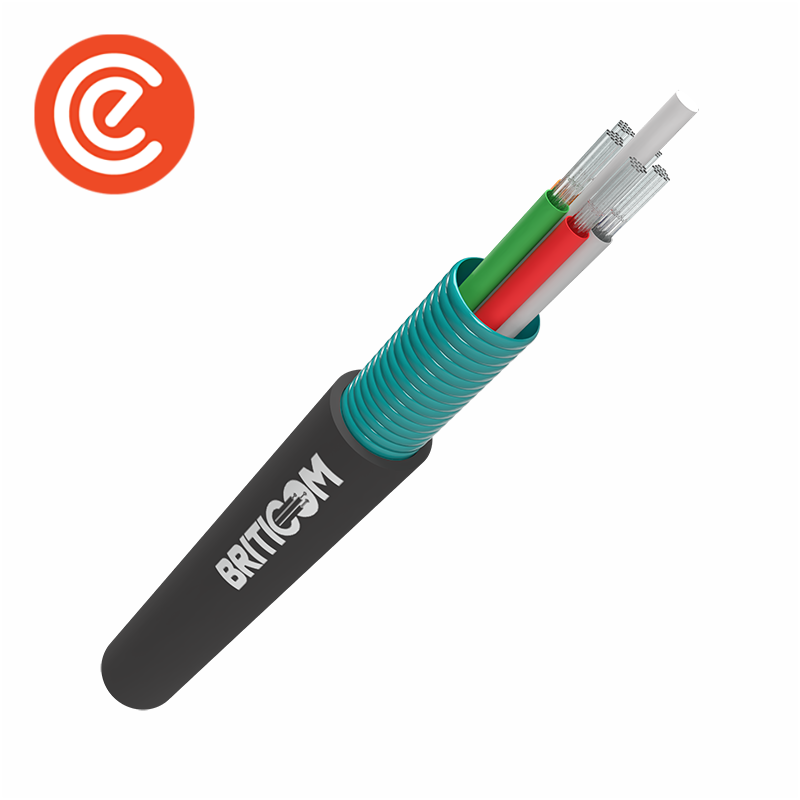

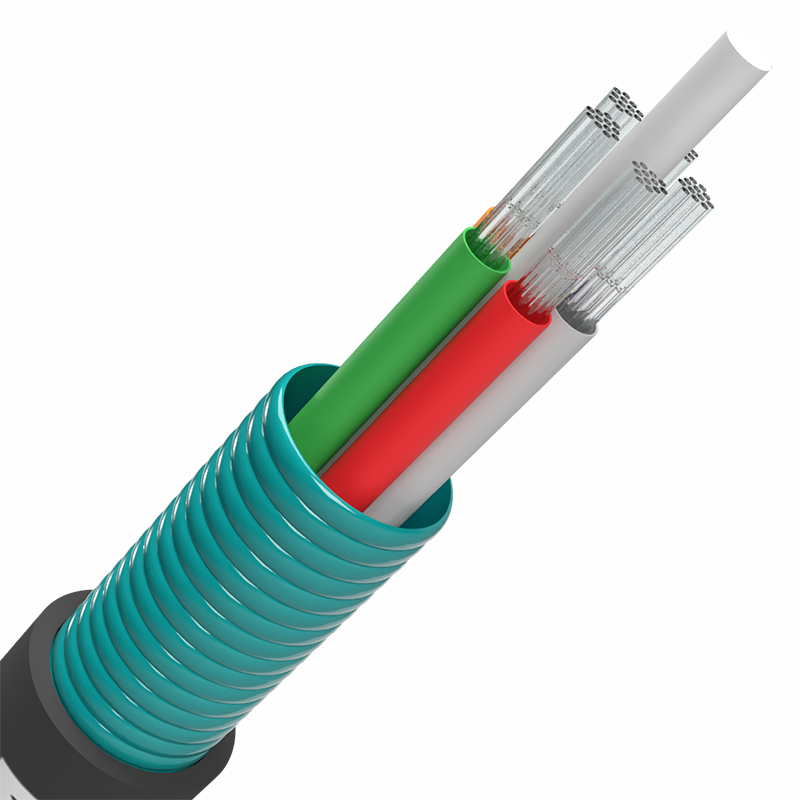

Horizontal Steel Tape Armoured Multi Tube Cable – FRP Central Strength Member – 12-144 Fibres

Briticom™ offers a wide range of indoor and outdoor fibre optic distribution, patching and consumer cables – including Plenum, Riser and LSZH in all diameters. These are used to provide links to protocols such as FTTH, FDDI, 10 Gigabit Ethernet, ATM.

Example PN MTSTAS2C72PEFCM Categories: Horizontal, Outdoor Cable

general information
Additional information

Briticom® offers Steel Tape Armoured Multi-Tube Cable as well as a wide range of indoor and outdoor fibre optic distribution, patching and consumer cables including Plenum, Riser and LSZH in all diameters. These are used to provide links to protocols such as FTTH, FDDI, 10 Gigabit Ethernet, ATM.

Already bought this product from us? Share your experience on LinkedIn

Multitube – steel tape armoured
FRP Central Strength Member
For outdoor use Harsh environments
IEC 60332-1 & 3 – IEC 60228
Water, flame and rodent resistant
Available in many colours

CATV – Cable television
Fibre-To-The-Home (FTTH)
ODFs to wall outlets, wall outlets to desk

Steel Tape Armoured Multi-Tube Cable

Outer Sheath	PE or LSZH
Fibre Count	12 – 144
Outer Diameter (mm)	10.5 ~ 18.8
Weight per Km	112 – 343 kg
Max Tensile Strength (N)	1000 – 1500
Mini Bend Radius (mm)	110-340 D
Max Crush Resistance (N/100mm²)	4000
Operating Temp. (⁰C)	-40 ~ 70

Cable Type	ULSTA (Uni-Loose Tube Steel Tape Armoured), MTSTA (Multi-Loose Tube Steel Tape Armoured), MTDSTS (Multi-Loose Tube Double Steel Tape Armoured & Sheath), MLNA (Multi-Loose Tube Non-Armoured), ULNA (Uni-Loose Tube Non-Armoured), MTLAT (Multi-Loose Laminated Aluminium Tape), ULLAT (Single-Loose Tube Laminated Aluminium Tape)
Fibre Type	S1 (OS1), S2 (OS2), M1 (OM1), M2 (OM2), M3 (OM3), M4 (OM4), A1 (G657A1), A2 (G657A2), B3 (G657B)
No of Fibres	C1, C2, C3, C4, C5, C6, C7, C9, C10, C11, C12, C72, C48, C72, C96, C144, C288
Material	HD (High-Density Polyethylene), PV (PVC), LS (LSZH), PE (Polyethylene), LD (Low-Density Polyethylene), DJ (Double Jacket PE/PVC), DJHD (Double Jacket HDPE), SJHD (Single Jacket HDPE), SJPE (Single Jacket PE)
Additional	DY (Dry), 2W (2 Wires), FI (Flat inside Round), SM (Steel Wire Messenger), FRPM (FRP Messenger), FRPMF8 (Figure 8 FRP Messenger), FRP2 (FRP x 2), FCM (FRP Central Strength Member), SCM (Steel Central Strength Member), Blank if none

Horizontal Steel Tape Armoured Multi Tube Cable – FRP Central Strength Member – 12-144 Fibres
