- Multiple operating modes to suit different applications: Default (Normal), VLAN (Secure) and EXTEND (Surveillance)
- Port-based traffic control for improved network management
- Secure mode isolates downlink ports, allowing communication only with uplink ports
- Up to 250 m transmission distance in Surveillance mode
- Advanced buffer optimisation for improved network performance
- Robust all-metal housing for enhanced safety, durability and reliability
- IP Surveillance & CCTV Systems
- Security & Access Control
- Smart Buildings
- Industrial Networking
- Factory & Warehouse Networks
- Retail & Commercial Networks
- Schools & Educational Facilities
- Hotels & Hospitality
- Transportation & Traffic Monitoring
- Remote & Outdoor Surveillance
- Small Business Networks

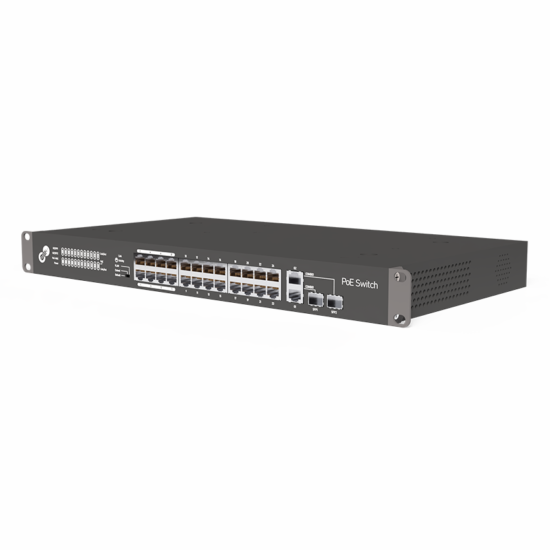

| Ports Type | 24×100Mbps PoE ports (RJ45) +2×1000Mbps Combo ports |
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az |
| Switching capacity | 8.8 Gbps |
| Forwarding performance | 6.55Mpps |
| Packet Buffer | 4 M bit |
| MAC | 16K |
| Power Supply | AC: 100-240V, 50/60Hz |
| Max. PoE Power | Max capacity: 250 W, Max capacity for single port: 30 W |
| Prior Ports | 1 to 8 |
| Max.Power | 265W |
| Operating temperature | 0 ºC to 40 ºC (32 ºF to 104 ºF) |
| Indicator | POWER Steady on: AC input is normal, POWER Off: No AC input, PoE-MAX off: The POE power supply power of the whole machine is less than 80% of the specification, PoE-MAX Steady on : The POE power supply power of the whole machine is greater than 85% of the specification, LINK/ACT Off: No link, LINK/ACT Steady on: Linked, LINK/ACT Flashing: Transmitting data, PoE Off: No PoE power supply, PoE Steady on: PoE power supply is normal |
| Cooling Fans | 1 |
| Dimensions (W×D×H) | 440*195*44mm |
| Weight | 2.14KG |
| Operating humidity | 10%~90% (non-condensing) |
| Working Mode | Default (Normal mode) : All ports can communicate with each other, Extend (Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports, VLAN (Secure mode): Downlink ports can communicate only with uplink ports. Enabling PD keepalive function, the switch will restart the IPC via PoE power when the IPC sends no message in a period of time |
| Hardware Specification | |
| PoE Mode | 802.3at/af , ModeA : (1/2+, 3/6-), ModeB : (4/5+, 7/8-) |
