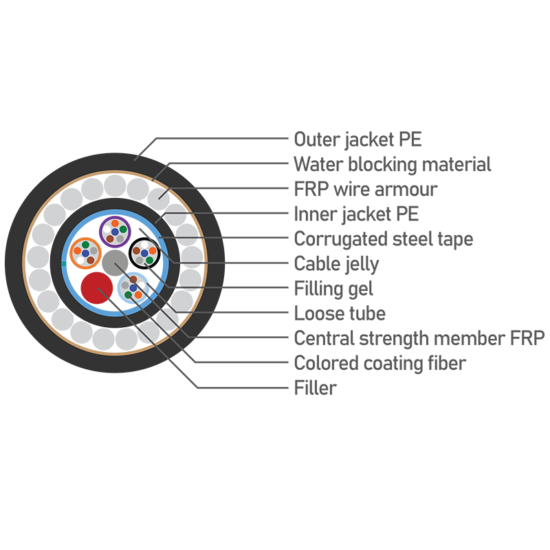

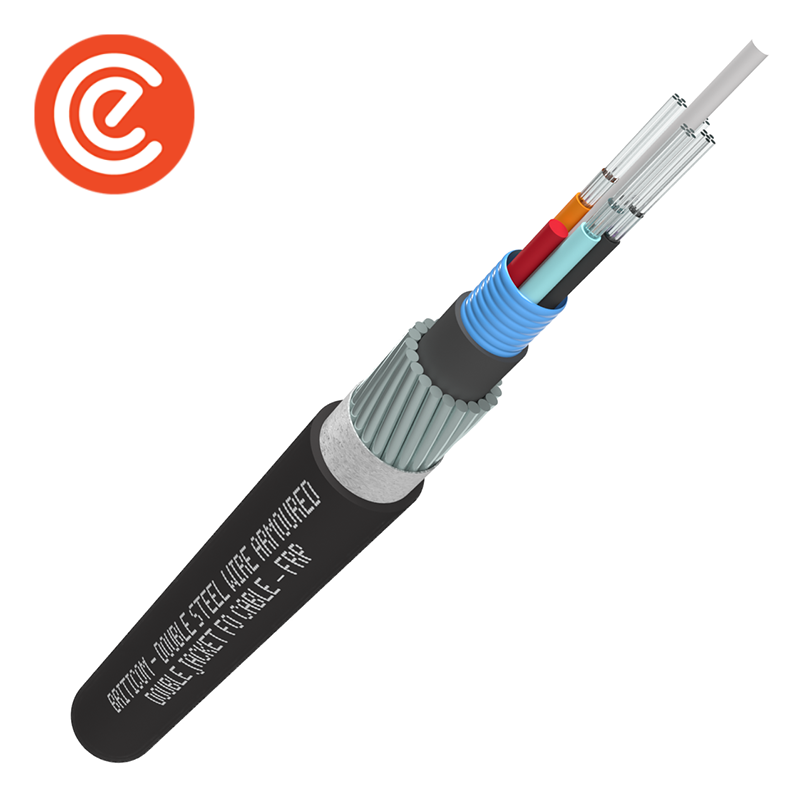

Briticom® Our steel wire and steel tape double armoured cable is super robust and has excellent crush resistance, The fibre optic strands are protected by not only steel tape and wire, but also a double jacket, water blocking material and a filling gel. This enables the cable to be suitable for buried and undersea applications.
Already bought this product from us? Share your experience on LinkedIn
- Double armoured cable including a corrugated steel tape and a steel wire
- Double PE sheath
- Excellent moisture resistance
- Water blocking filling compound
- APL moisture barrier
- Available in many colours
- Long Outdoor distance communication
- Inter-office communication
- Steep slopes and river / undersea crossing
- Very harsh environmental conditions
Steel Tape Armoured Multi-Tube Cable
| Outer Sheath | PE |
| Fibre Count | 2 – 36 |
| Max Tensile Strength (N) | 4000-20000 |
| Mini Bend Radius (mm) | 125 – 250D |
| Max Crush Resistance (N/100mm2) | 10000 |
| Operating Temp. (⁰C) | -40 ~ 70 |
