Briticom® Micromodule FO Cable 288 Fibres has a unique extruding technology providing the fibres in the tube with good flexibility and bending endurance. The unique fibre excess length control method provides the cable with excellent mechanical and environmental properties. Multiple water blocking material filling provides dual water blocking function.
Already bought this product from us? Share your experience on LinkedIn

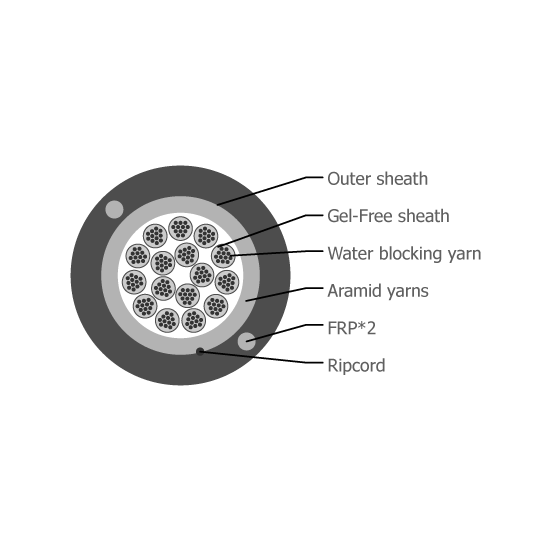

- Outer sheath (HDPE, Black)
- Gel-free μsheath
- Water blocking yarn
- Aramid yarns
- FRP×2
- Ripcord×1
- FTTH GPON – Telecom
- Outdoor Installations
Micromodule FO Cable 288 Fibres
| Fibre count (G.657A2/G.652D) | 288 |
| Number of Fibre Per Tube | 12 |
| Number of μsheath | 24 |
| μsheath Diameter | 1.5±0.1mm |
| Strength Member Diameter | 1.6±0.1mm*2 |
| Outer Sheath Thickness | Nominal 2.6 mm |
| Cable OD | 18.8mm±5% |
| Cable Weight | 128kg/km±15% |
| Operation Temperature Range | -30 deg C to + 60 deg C |
| Installation Temperature Range | -5 deg C to + 40 deg C |
| Transport And Storage Temperature Range | -40 deg C to + 70 deg C |
| Max. Tensile Load | 3600 N |
| Span | 50m |
| Crush Resistance | 3000 N/10cm |
| Minimal Installation Bending Radius | 20 x OD |
| Minimal Operation Bending Radius | 10 x OD |
