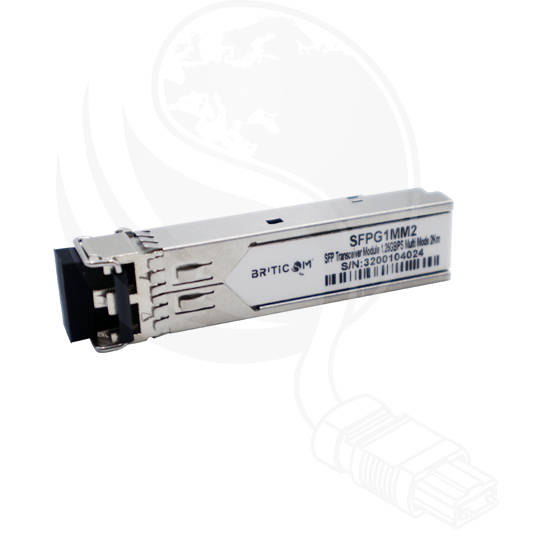

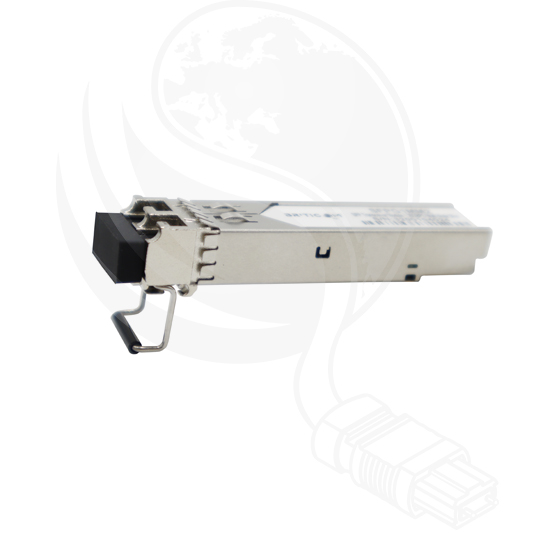

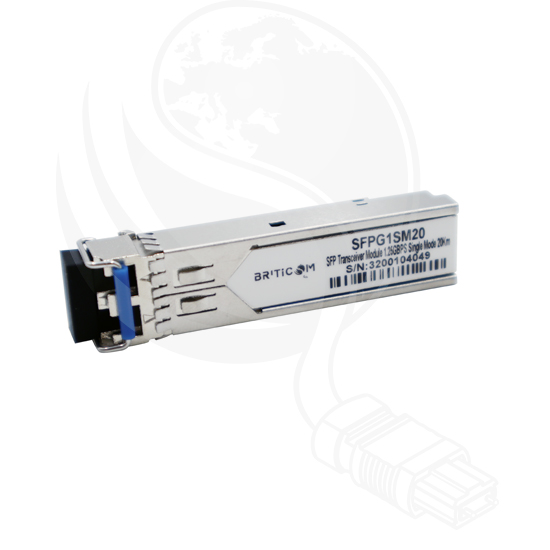

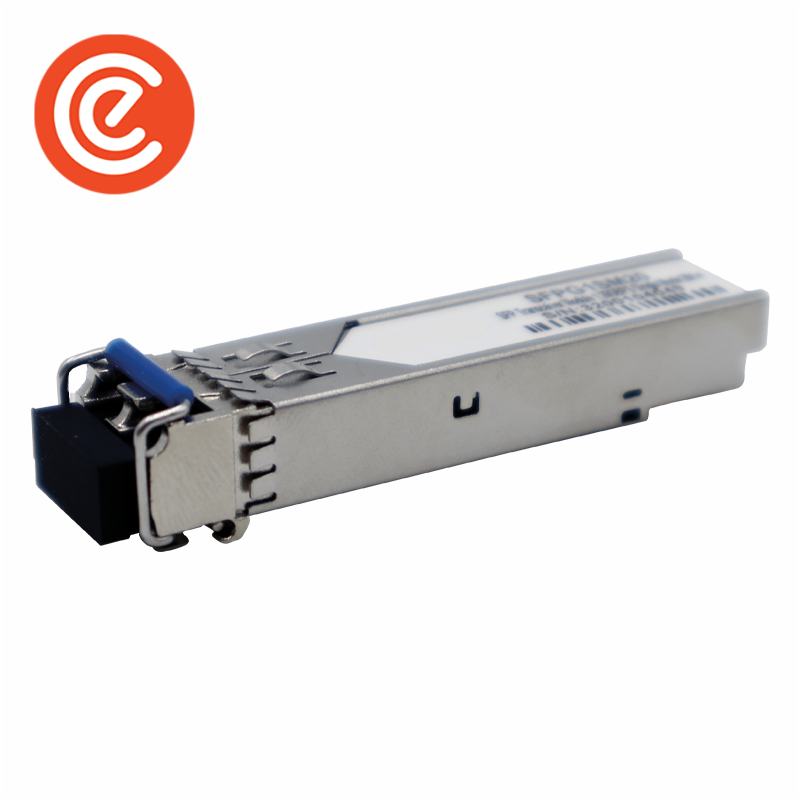

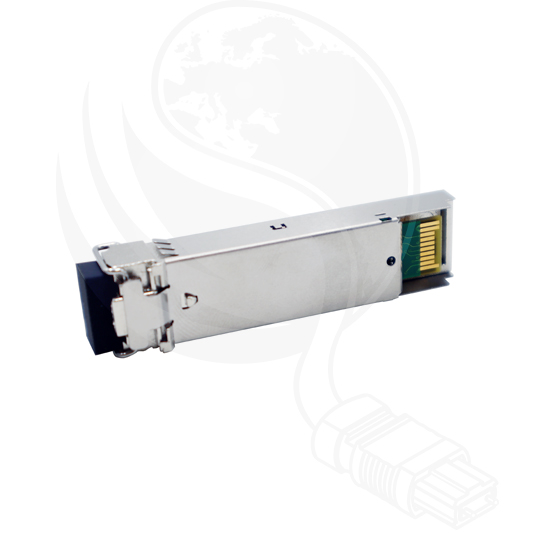

Briticom® Small Form-Factor Pluggable SFP Transceiver – Optical are used to interface networking devices to fibre or copper networking cables in telecom and data applications.
Already bought this product from us? Share your experience on LinkedIn
- Support 155Mbps to 2.488Gbps multi-rate data links
- 850nm VCSEL laser and PIN photodetector
- Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
- Digital Diagnostic Monitoring: Internal Calibration or External Calibration
- 300m transmission with 50/125μm MMF
- Compatible with RoHS
- +3.3V single power supply
- 2X Fibre Channel
- Switch to Switch interface
- Switched backplane applications
- Router/Server interface
- Other optical transmission systems
SFP Transceiver – Optical
| Supply Voltage | Vcc -0.5 ~ 4.5 V |
| Data Rate | 155Mbps ~ 2.488Gbps |
| Average Output Power | -10 Min ~ -3 Max dBm |
| Extinction Ratio | ER 9 dB |
| TX Disable | Vd 2.0 Vcc V |
| TX Enable | Ven 0 ~ 0.8V |
| TX Fault | VIf 2.0 VccHOST V |
| TX Normal | Vin 0 ~ +0.8 V |
| LOS De-Assert | LOSD -20dBm |
| LOS Assert | LOSA -30dBm |
| LOS Hysteresis | 1 ~ 4 dB |
| Data Output Swing Differential | Vout 370 ~ 1800 mV |
| Temperature | -20⁰C ~ +85⁰C |
