Briticom® SFP Transceiver XFP BIDI Optical are used to interface networking devices to fibre or copper networking cables in Telecom and data applications.
Already bought this product from us? Share your experience on LinkedIn
- Supports 9.95Gb/s to 11.3Gb/s bit rates
- 1330nm DFB Laser and PIN photodetector
- 1270nm DFB Laser and PIN photodetector
- Up to 10km transmission on SMF
- Power dissipation < 2W
- Single Power Supply: 3.3V
- No Reference Clock Required
- Compatible with RoHS
- Built-in Digital Diagnostic Functions
- 10GBASE-LR/LW 10G Ethernet
- SONET OC-192 SR-1
- SDH STM I-64.1
- 1200-SM-LL-L 10G Fibre Channel
- 10GBASE-LR/LW with FEC
- 1200-SM-LL-L 10G Fibre Channel with FEC

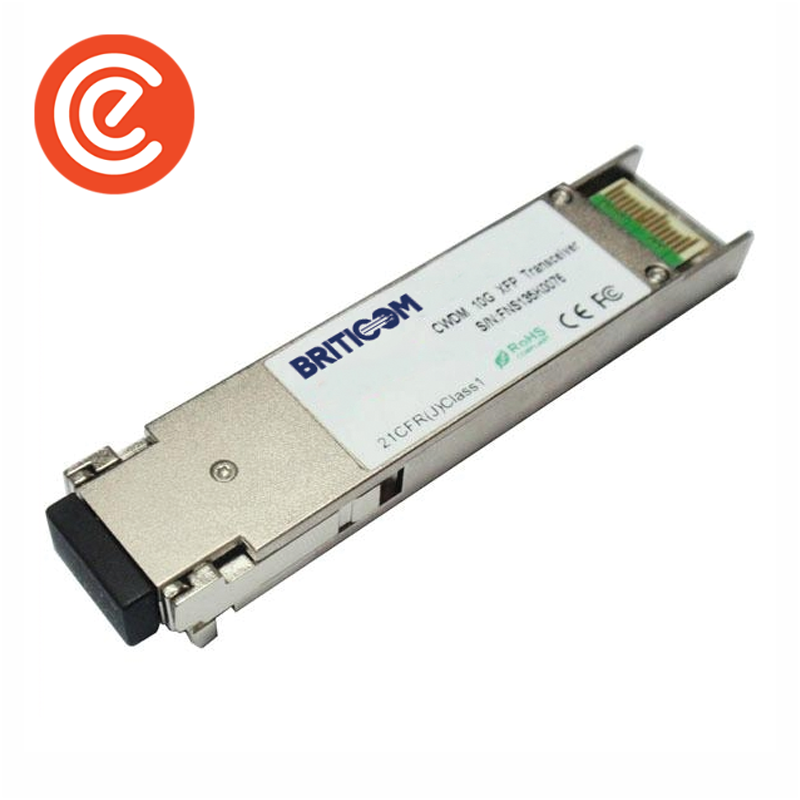

SFP Transceiver XFP BIDI Optical
| Supply Voltage | Vcc 0 ~ 3.6 V |
| Data Rate | 9.95 ~ 11.3 Gbps |
| Average Output Power | -8 Min ~ 0.5 Max dBm |
| Extinction Ratio | ER 3.5 dB |
| TX Disable | Vd 2.0Vcc V |
| TX Enable | Ven 0 ~ 0.8V |
| TX Fault Assert | VIf 2.0 Vcc HOST V |
| TX Fault De Assert | Vin 0 ~ 0+0.8 V |
| LOS De-Assert | LOSD -16dBm |
| LOS Assert | LOSA -20dBm |
| LOS Hysteresis | 0.5 ~ 4.5 dB |
| Data Output Swing Differential | Vout 340 ~ 850 mV |
| Temperature | -10⁰C ~ +85⁰C |
